CLE-150-01-G-DV-A

Conn Socket Strip SKT 100POS 0.8mm Solder ST SMD Tube

100 位置 插座，通透式 0.031"（0.80mm） 表面贴装型 镀金

得捷:
CONN RCPT 100POS 0.031 GOLD SMD

艾睿:

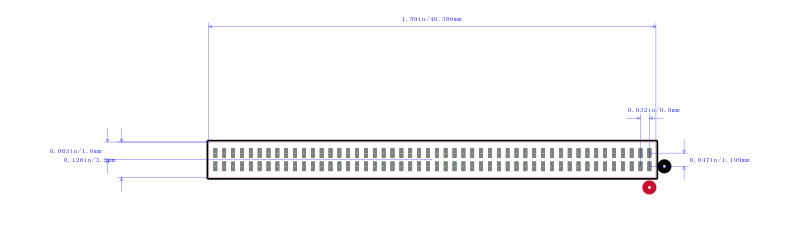

Thanks to Samtec&s;s socket strip CLE-150-01-G-DV-A header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This SKT connector&s;s 100 contacts that are made out of beryllium copper and plated with gold over nickel. It has a straight body orientation. It has a socket type gender. This is a 2-row connector. Its pitch is 0.8 mm. This device has a maximum current rating of 2.7 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. CLE-150-01-G-DV-A is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. This product is 40 mm long, 3.3 mm tall and 4.83 mm deep.

安富利:
Conn Socket Strip SKT 100 POS 0.8mm Solder ST SMD Tube

Newark:
# SAMTEC  CLE-150-01-G-DV-A  Board-To-Board Connector, 0.8 mm, 100 Contacts, Receptacle, CLE Series, Surface Mount, 2 Rows
