CLE-120-01-G-DV-A

Conn Socket Strip SKT 40POS 0.8mm Solder ST SMD Tube

* Available up to 180 positions * Available with cost saving gold plating * Cost effective Tiger Beam contact system * Ideal for pass-through applications * Optional tape and reel packaging

得捷:
CONN RCPT 40POS 0.031 GOLD SMD

欧时:
0.80 mm 40 P Socket 10µ"Au

艾睿:

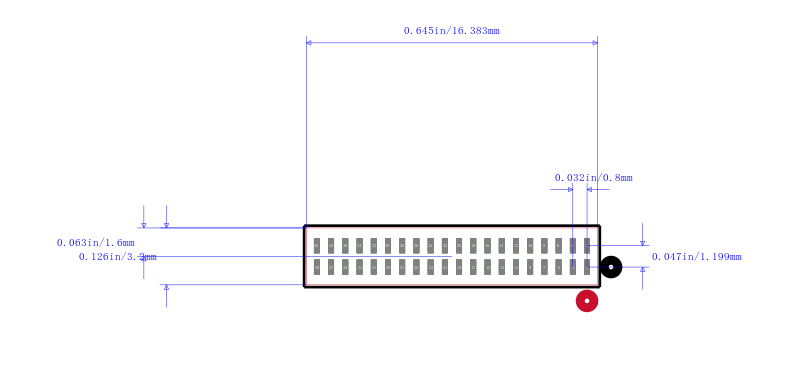

Mounting this socket strip CLE-120-01-G-DV-A header connector from Samtec to your printed circuit board can help you support multiple physical configuration options. This SKT connector&s;s 40 contacts that are made out of beryllium copper and plated with gold over nickel. Its pitch is 0.8 mm. This is a 2-row connector. It has a straight body orientation. It has a socket type gender. This device has a maximum current rating of 2.7 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 16 mm long, 3.3 mm tall and 4.83 mm deep. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. CLE-120-01-G-DV-A is housed in black liquid crystal polymer.

安富利:
Conn Socket Strip SKT 40 POS 0.8mm Solder ST SMD Tube

Newark:
# SAMTEC  CLE-120-01-G-DV-A  Board-To-Board Connector, 0.8 mm, 40 Contacts, Receptacle, CLE Series, Surface Mount, 2 Rows
