CES-145-01-T-D

SAMTEC CES-145-01-T-D Board-To-Board Connector, 2.54mm, 90Contacts, Receptacle, CES Series, Through Hole, 2Rows

90 位置 插座 0.100"（2.54mm） 通孔 锡

得捷:
CONN RCPT 90POS 0.1 TIN PCB

艾睿:

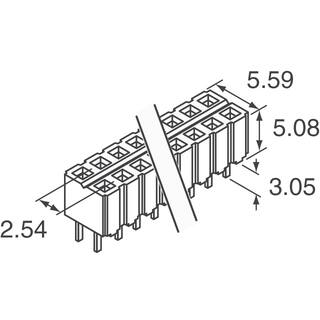

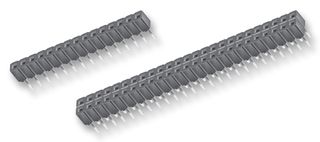

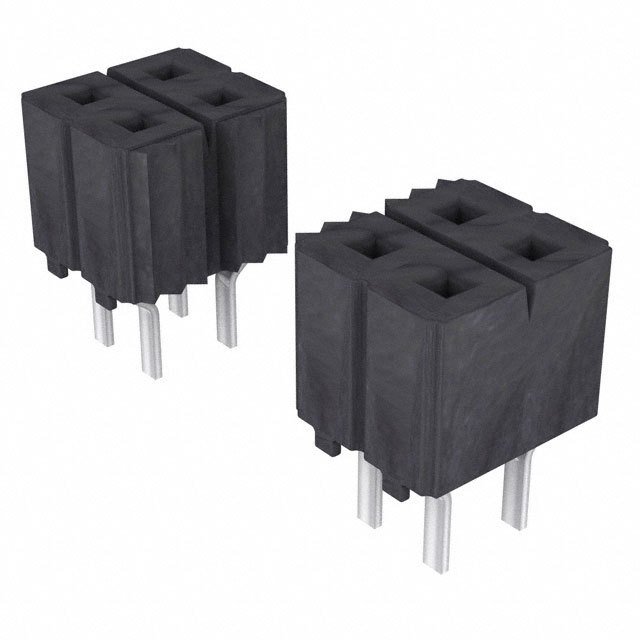

This socket strip CES-145-01-T-D header connector from Samtec reduces the possibility of accidentally shorting pins when a board is being used. This SKT connector&s;s 90 contacts that are made out of phosphor bronze and plated with tin over nickel. Its pitch is 2.54 mm. It has a maximum voltage rating of 400 VAC. It has a straight body orientation. It has a socket type gender. This is a 2-row connector. This device has a maximum current rating of 5.5 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. CES-145-01-T-D is housed in black polyester. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C. This product is 114.3 mm long, 5.08 mm tall and 5.59 mm deep.

Newark:
# SAMTEC  CES-145-01-T-D  Board-To-Board Connector, 2.54 mm, 90 Contacts, Receptacle, CES Series, Through Hole, 2 Rows
