CES-131-02-G-S-RA

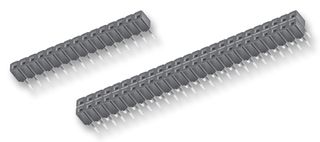

CES-131-02-G-S-RA图片1
CES-131-02-G-S-RA图片2
CES-131-02-G-S-RA图片3
CES-131-02-G-S-RA图片4
CES-131-02-G-S-RA概述

SAMTEC CES-131-02-G-S-RA Board-To-Board Connector, 2.54mm, 31Contacts, Receptacle, CES Series, Through Hole, 1Rows

The CES series from are closed entry low profile socket strips. These through hole socket strips mates with Samtec TLW, TSW, MTLW, MTSW, HW, EW, ZW, DW, HTSW, PHT and HMTSW series of connectors.

.
Orderable with single/dual rows -S/-D options
.
Pitch spacing is 2.54mm 1 to 50 contacts per row with right angle -RA orientation
.
High operating temperature range of -55°C to 125°C for 20µ" gold plated contacts
.
Black glass filled polyester insulator material
.
Voltage rating is 400VAC
.
Contact resistance is 10mohm
.
Dual leaf contact system
.
Complies with UL E111594 and CSA 090871_0_000 standards
.
Contact material is phosphor bronze
CES-131-02-G-S-RA中文资料参数规格
技术参数

触点数 31

极性 Female

触点电镀 Gold

排数 1

封装参数

安装方式 Through Hole

物理参数

外壳颜色 Black

触点材质 Phosphor Bronze

工作温度 -55℃ ~ 125℃

符合标准

RoHS标准 RoHS Compliant

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册

在线购买CES-131-02-G-S-RA
型号: CES-131-02-G-S-RA
描述:SAMTEC CES-131-02-G-S-RA Board-To-Board Connector, 2.54mm, 31Contacts, Receptacle, CES Series, Through Hole, 1Rows
