CE100F22-2-D

PANCON CONNECTORS  CE100F22-2-D  绝缘压穿 IDC 连接器

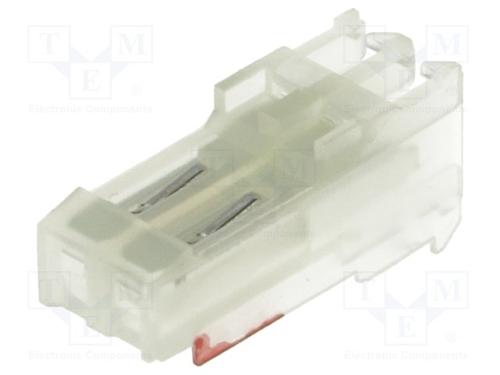

The is a 2-way 1-row MAS-CON® 0.100-inch IDC Wire-to-board Connector with tin-plated copper alloy contacts. It accepts 22AWG wire and features 6/6 nylon housing. The 0.100-inch pitch MAS-CON IDC socket allows a reliable and economical method to bring signals to a PCB using discrete wire or pre-notched flat cable. Pre-loaded insulation displacement copper alloy contacts are 200µinch tin-plated over nickel.

.

Non-polarized

.

5000MR Minimum insulation resistance

.

4A Maximum current per contact

.

300V Maximum voltage rating

.

2kVAC Minimum dielectric voltage

.

UL94V-2 Flammability rating
