CES-105-01-T-S

板至板连接, 2.54 mm, 5 触点, 插座, CES Series, 通孔安装, 1 排

5 位置 插座 0.100"（2.54mm） 通孔 锡

得捷:
CONN RCPT 5POS 0.1 TIN PCB

欧时:
.100" Closed Entry Low Profile Socket S

立创商城:
2.54mm

e络盟:
板至板连接, 2.54 mm, 5 触点, 插座, CES Series, 通孔安装, 1 排

艾睿:

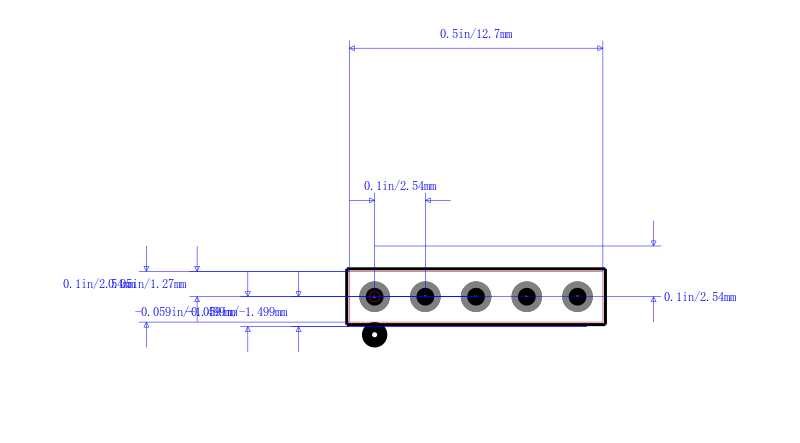

Support physical configuration options for jumper posts by mounting this socket strip CES-105-01-T-S header connector from Samtec. This SKT connector&s;s 5 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a straight body orientation. Its pitch is 2.54 mm. It has a socket type gender. It has a maximum voltage rating of 400 VAC. This is a 1-row connector. This device has a maximum current rating of 5.5 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 12.7 mm long, 5.08 mm tall and 3.05 mm deep. CES-105-01-T-S is housed in black polyester. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C.

安富利:
Conn Socket Strip SKT 5 POS 2.54mm Solder ST Thru-Hole Tube

Verical:
Conn Socket Strip SKT 5 POS 2.54mm Solder ST Thru-Hole Tube

Newark:
# SAMTEC  CES-105-01-T-S  Board-To-Board Connector, 2.54 mm, 5 Contacts, Receptacle, CES Series, Through Hole, 1 Rows
