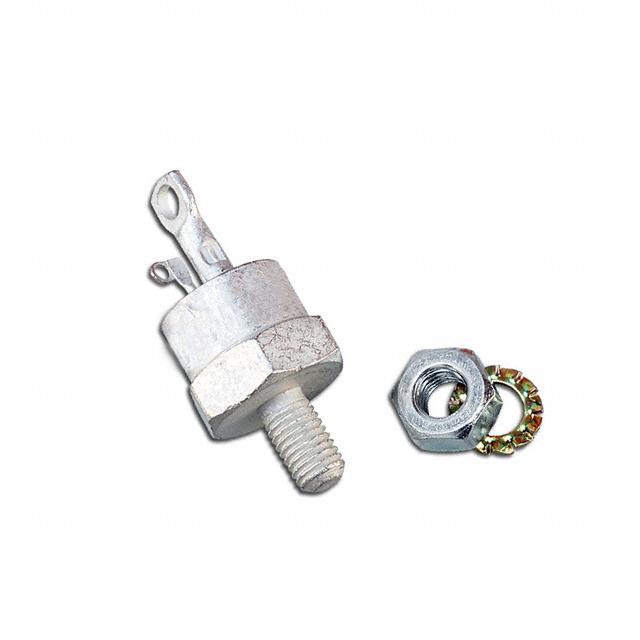

IXYS SEMICONDUCTOR CS35-14IO4 晶闸管, 1400 V, 100 mA, 69 A, 120 A, TO-208AC, 3 引脚
The is a 3-pin Phase Control Thyristor for line frequencies. The thyristor is designed for optimal forward conduction and reverse blocking characteristics, due to only moderate requirements for turn-on and turn-off parameters and they feature the highest current capacity per chip area especially at high voltage.
- .
- Planar glassivated chip
- .
- Long-term stability of blocking currents and voltages
- .
- Improved temperature and power cycling
额定电压DC 1.40 kV
额定电流 63.0 A
保持电流 80 mA
保持电流Max 80 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
安装方式 Through Hole
引脚数 3
封装 TO-208
封装 TO-208
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
制造应用 电机驱动与控制, Power Management, Motor Drive & Control, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CS35-14IO4 IXYS Semiconductor | 当前型号 | 当前型号 |
CS35-12IO4 IXYS Semiconductor | 功能相似 | CS35-14IO4和CS35-12IO4的区别 |
