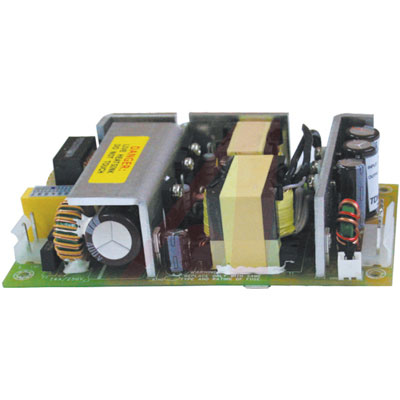

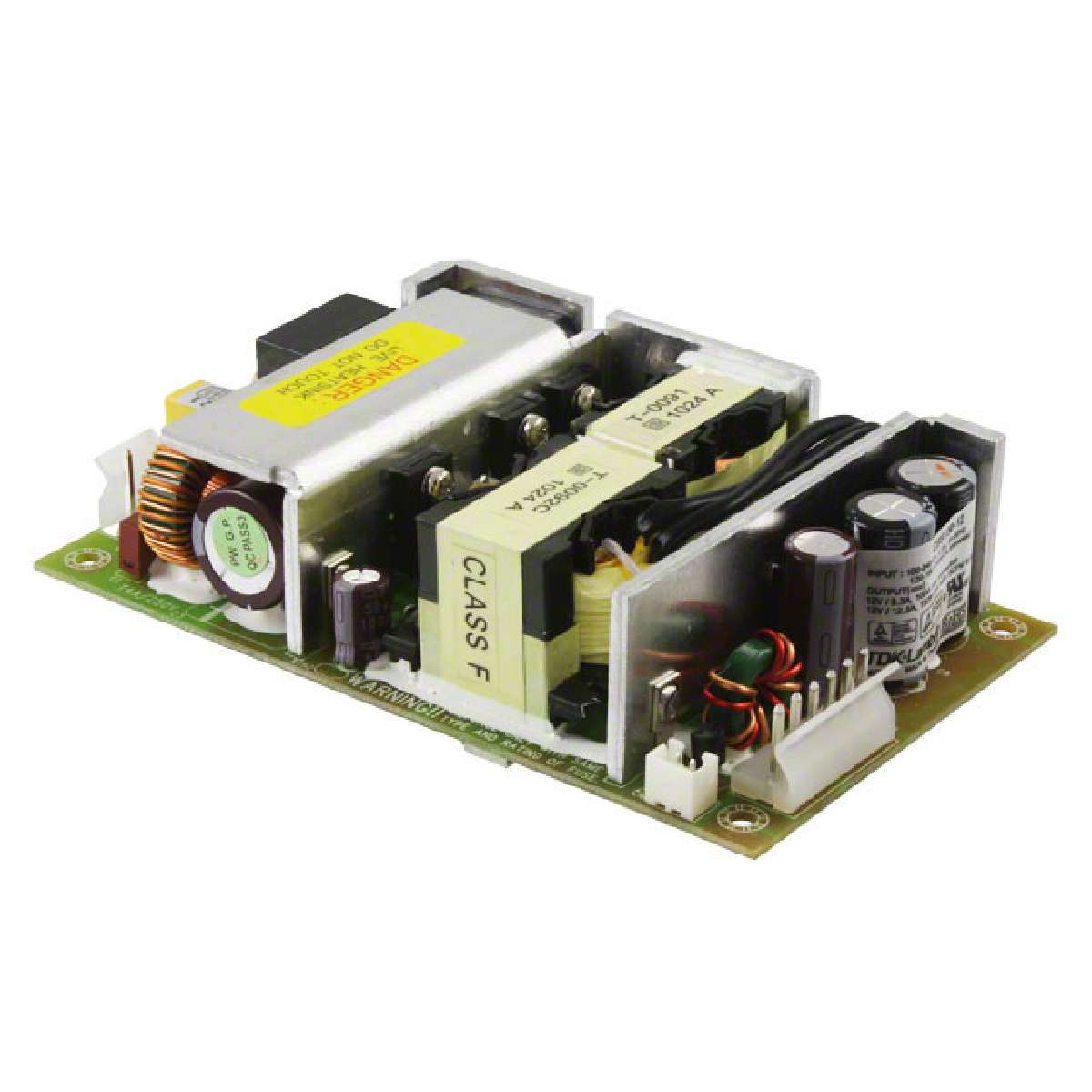

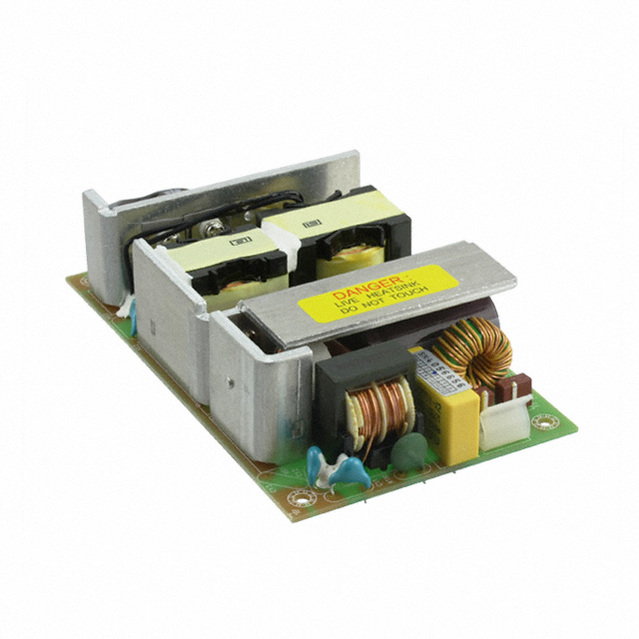

CSS150-48

Power Supply, AC-DC, Medical, 150W, 48V, 2.1A, 46.60 - 49.44V Adj., 90-264VAC

* Safety Approvals: UL/EN/IEC60601-1 and CE Mark

* ITE Safety Approvals: UL/EN60950-1

* Wide Input Voltage Range — 90-264 VAC

* Low-Profile, Industry Standard Footprint

5" L × 3" W × 1.3" H

* 4 kVAC Input to Output Withstand Voltage

* Class B Conducted and Radiated EMI

* Meets EM60601-1-2 Immunity

得捷:
AC/DC CONVERTER 48V 100W

艾睿:
With this CSS150-48 AC to DC power supply from TDK-Lambda your electronic device will be able to operate by using direct current instead of alternating current. It has a voltage of 48 V and maximum output power of 100 W. This part&s;s single output can handle a current up to 2.1 A. This part has a temperature range of 0 °C to 70 °C.

Allied Electronics:
Power Supply; AC-DC; 48V; 2.1A; 90-264V In; Open Frame; Pnl Mnt; Medical; CSS150 Series

Chip1Stop:
AC/DC Power Supply Single-OUT 48V 2.1A 100W Medical 10-Pin

Verical:
AC/DC Power Supply Single-OUT 48V 2.1A 100W Medical 10-Pin
