HOFFMAN ENCLOSURES CSD20168SS Metallic Enclosure, IP66, NEMA 13, Wall Mount, IP66, 13, 508mm, 406mm, 203mm
**Applications:**

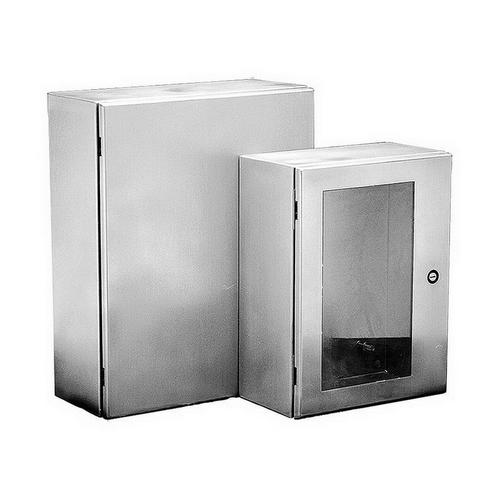

For indoor or outdoor applications that require protection from chemicals and water. CONCEPT™ Enclosures feature streamlined styling with an attractive stroked finish and flush quarter-turn Latch for secure closure. Available in solid- and window-door models.
**Specifications:**
* Manufactured from Type 304 or Type 316L Stainless Steel
* Minimum-Width Body Flange Provides Maximum Body Opening
* External Formed 90-Degree Body Flange
* Panel Mounting Studs Fit Optional CONCEPT™ Panels and Other Accessories
* Mounting Holes in Back of Body for Direct Mounting or for Optional External Mounting Brackets
* Type 316 Stainless Steel Hidden Hinges Promote Clean Aesthetic Appearance
* Corner Formed Doors Are Interchangeable and Easily Removed by Pulling Clip-Style Hinge Pins
* Provision on Door Except Window-Door Style and When W = 12 in. for Thermoplastic Data Pocket
* Provision on Door Except Window-Door Style and When W = 12 in. for Optional Doorstop Kit
* Quarter-Turn Latch Furnished with Flush Slotted Insert
* Seamless Foam-in-Place Gasket
* Self-Grounding Latch System with Double Seal
* Bonding Provision on Door; Grounding Stud on Body
* Furnished Hardware Kit Consists of Panel-Mounting Nuts, Panel-Grounding Hardware and Sealing Washers for Wall-Mounting Holes
* Installation Instructions
* Window Doors Have a Clear Polycarbonate Window
**Finish:**
Door and body have smooth #4 brushed finish.
**Industry Standards:**
* Mounting Brackets Required to Meet UL/CSA External Mounting Requirements
* UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
* cUL Listed per CSA C22.2 No. 94; Type 3R, 4, 4X, 12; File No. E61997
* NEMA/EEMAC Type 3R, 4, 4X, 12, 13
* CSA File No. 42186; Type 4, 4X, 12
* VDE IP66
* IEC 60529, IP66
* Meets NEMA Type 3RX Requirements
