CS28B1805

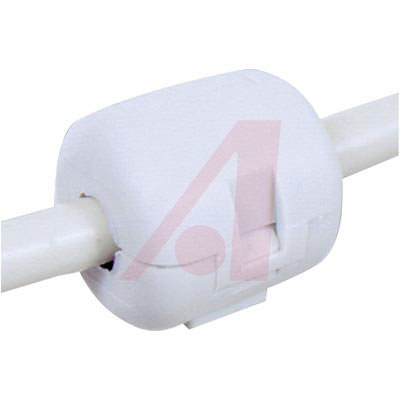

CS28B1805图片1

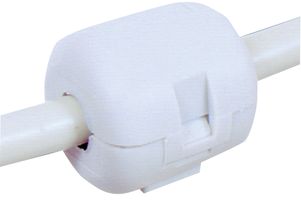

CS28B1805图片2
CS28B1805图片3
CS28B1805图片4
CS28B1805图片5
CS28B1805概述

Ferrite Core, Split, 8.6mm, 73Ω/100MHz

Cable Snap For Round Cables, 1 in. Cable Diameter

Anywhere there is an antenna-like structure such as power cord or I/O cable, in the presence of a microprocessor, there is a need for RFI suppressors to control unwanted high frequency interference by allowing data signals to pass unimpeded, and absorbing the high frequency energy. The section below is an assortment of the most popular sizes in the most universally applicable broadband formula — effective up to 1 GHz.

Ferrite assembly in fully enclosed nylon case; functional with wires and cables up to a 2.0" 50.8 mm diameter. Snap closed around wire by clasping shut to position assembly. May also be mounted with a flat-head screw through the 0.120" 3.0 mm diameter hole in the bottom by temporarily removing lower ferrite half.

Ferrite assembly in fully enclosed nylon case and functional with wires and cables up to a 1 in. diameter.

CS28B1805中文资料参数规格
技术参数

频率 100 MHz

封装参数

封装 100

外形尺寸

长度 26.416 mm

宽度 26.4 mm

高度 16.9 mm

封装 100

物理参数

颜色 Gray

材质 Ferrite

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 无铅

REACH SVHC版本 2015/12/17

数据手册

在线购买CS28B1805
型号: CS28B1805
制造商: Leader Tech
描述:Ferrite Core, Split, 8.6mm, 73Ω/100MHz
