CA06COME14S-6SB

电缆插头和插座### 注对照表的“外壳规格”栏指明了外壳规格以及引脚数目 P 或插座数目 S。触点材料 | 铜合金 ---|--- 触点镀层 | 镍 触点电阻 | 6mΩ 额定电流 | 22A 额定电压 | 350V（35 路为 530V） 绝缘电阻 | >1000MΩ 防护等级 | IP60 温度 | -55 → +125°C 电线截面积 | 0.14 - 2.5 mm²

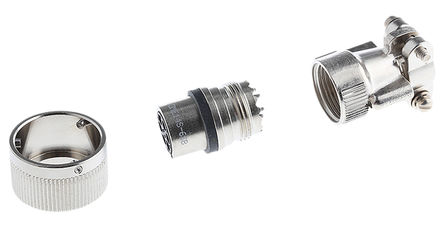

The from ITT Cannon is CA-COM-B series, MIL-DTL-5015 series equivalent straight plug with 6 contacts. CA-COM-B series connectors are available in wide range of connector styles and sizes. It provides superior performance in extreme environmental conditions and resists aggressive fluids like fuel and oil. High mechanical robustness with high density contact arrangements in a miniature circular shell and combines high coupling durability. This is most versatile connector for an accurate connects and disconnect in environmentally challenging situations. The coupling unit is featured by roller bolts made of stainless steel rolling down the mating ramp, thus reducing coupling torque. These series of connectors are intermateable and interchangeable with the corresponding types as per SAE-AS50151 and VG95234 as they offer the same mounting dimensions and contact arrangements.

.

Rapid mating and unmating by a positive quarter turn bayonet locking mechanism

.

Reverse bayonet coupling, offers exceptional vibration protection by a simple 120° turn

.

500 mating cycles, IP67 environmental resistance

.

Operating temperature range of -55°C to +125°C

.

Insulation resistance is > 1000Mohm

.

Resilient polychloroprene neoprene insulator

.

Moisture and corrosion resistant

.

Operating voltage is 50VAC

.

Aluminium alloy body material with zinc die-cast, nickel plating

.

Copper alloy solder socket contacts with silver plating
