时间延迟和计时继电器 120VAC .1 - 10SEC 10AMP

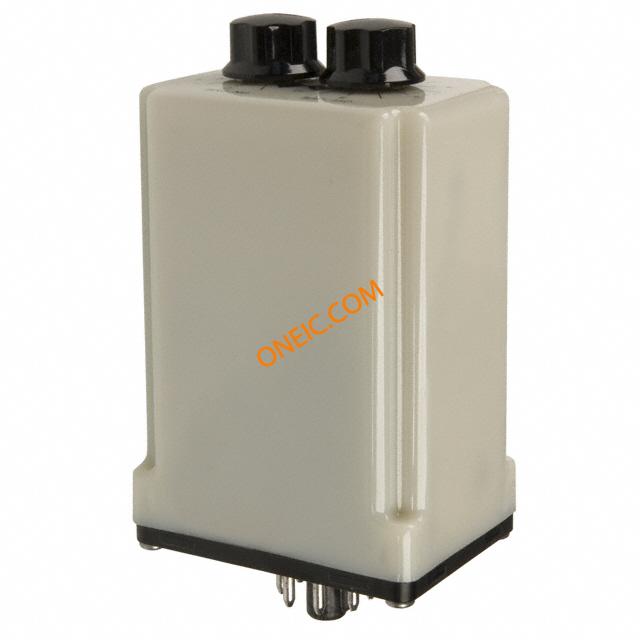

CR Series, Recycle Time Delay Relay: Individual ON and OFF time adjustment knobs. 10A output relay with DPDT contacts. Various models time from 0.1 to 180 sec.
贸泽:
时间延迟和计时继电器 120VAC .1 - 10SEC 10AMP
艾睿:
Time Delay Relay 120VAC 10A DPDT31.75x45.2x90.42mm Socket
Allied Electronics:
Time Delay Relay; DPDT 10A 120V AC; 9-1393137-9
Chip1Stop:
Electromechanical Relay 120VAC 10A DPDT 31.75x45.2x90.42mm Socket Time Delay Relay
Verical:
Time Delay Relay 120VAC 10A DPDT31.75x45.2x90.42mm Socket
MASTER:
Time Delay Relay 120VAC 10A DPDT31.75x45.2x90.42mm Socket
Electro Sonic:
Time Delay Relay 120VAC 10A DPDT31.75x45.2x90.42mm Socket
触点类型 DPDT
触点额定电流 10.0 A
线圈电压AC 120 V
载流 10.0 A
额定电流Max 10 A
开关电流Max 10 A
工作温度Max 55 ℃
工作温度Min -10 ℃
电源电压 120 VAC
输入电压 120 VAC
安装方式 Plug In
长度 31.75 mm
宽度 90.42 mm
高度 45.2 mm
触点材质 Silver Cadmium Oxide
产品生命周期 Active
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CRB-48-70010 TE Connectivity 泰科 | 当前型号 | 当前型号 |
120A A/A DFA Amperite | 类似代替 | CRB-48-70010和120A A/A DFA的区别 |
TR-63122 Macromatic Controls | 功能相似 | CRB-48-70010和TR-63122的区别 |
