C0201C120K3GACTU

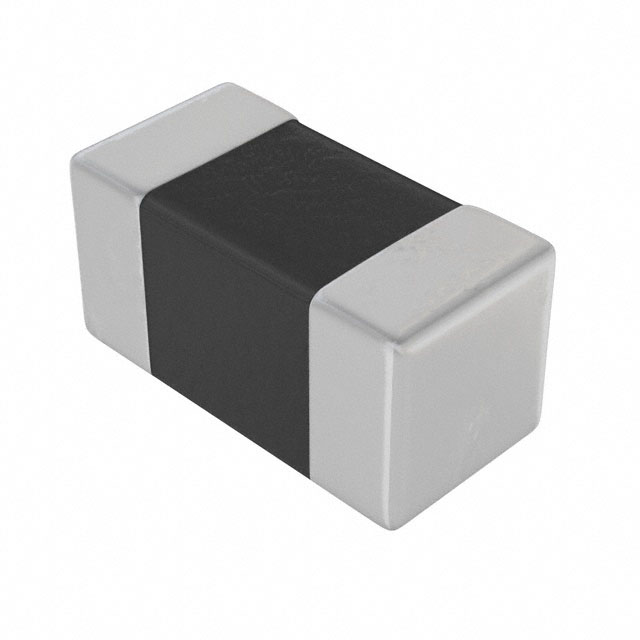

C0201C120K3GACTU图片1
C0201C120K3GACTU图片2
C0201C120K3GACTU图片3
C0201C120K3GACTU图片4
C0201C120K3GACTU图片5
C0201C120K3GACTU概述

Cap Ceramic 12pF 25V C0G 10% SMD 0201 125℃ T/R

±10% 25V 陶瓷器 C0G,NP0 0201(0603 公制)


得捷:
CAP CER 12PF 25V C0G/NP0 0201


艾睿:
You can use multiple capacitors of different parameters choosing this C0201C120K3GACTU multilayer ceramic capacitor from Kemet! It can withstand a voltage of 25 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 0.6 mm long, 0.3 mm tall and 0.3 mm deep. It has a tolerance of 10%. Its capacitance value is 12pF.


安富利:
Cap Ceramic 12pF 25V C0G 10% SMD 0201 125°C Paper T/R


Verical:
Cap Ceramic 12pF 25V C0G 10% Pad SMD 0201 125C Extreme Low ESR T/R


C0201C120K3GACTU中文资料参数规格
技术参数

绝缘电阻 100 GΩ

电容 12 pF

容差 ±10 %

电路数 1

工作温度Max 125 ℃

工作温度Min -55 ℃

额定电压 25 V

电源电压 2.97V ~ 3.63V

封装参数

安装方式 Surface Mount

封装公制 0603

封装 0201

外形尺寸

长度 0.6 mm

宽度 0.3 mm

高度 0.3 mm

封装公制 0603

封装 0201

物理参数

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 通用

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

C0201C120K3GACTU引脚图与封装图

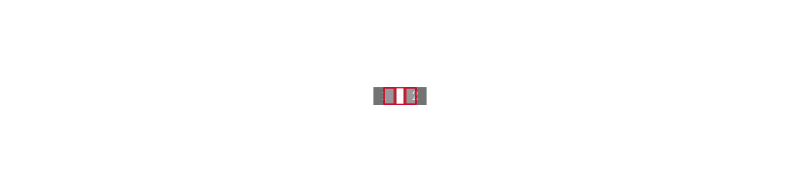

C0201C120K3GACTU引脚图
C0201C120K3GACTU封装图

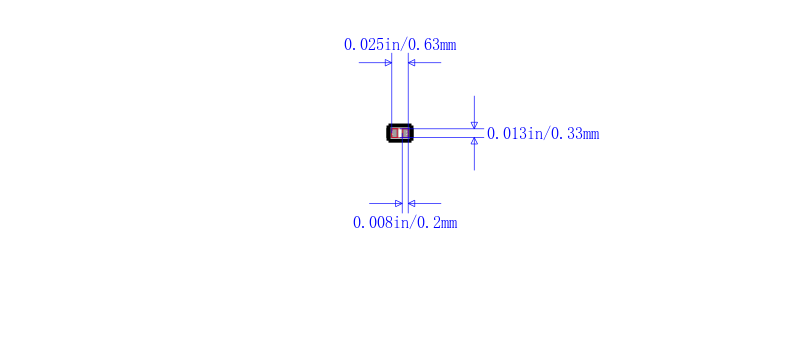

C0201C120K3GACTU封装焊盘图
