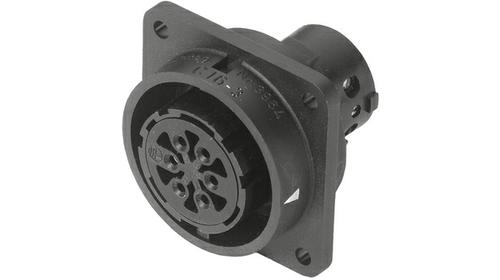

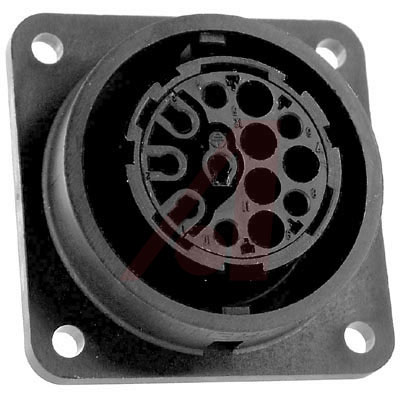

Conn Circular F 13POS Crimp ST Panel Mount 13 Terminal 1Port
Circular Connector, Polyamide 6.6 Housing,≤== 5 Milliohms Contact Resistance
** Size 1.** Crimp termination contacts sold separately. VDE Approval 3964, Underwriters Labs approval E63093, CSA approval 49932-9. For harsh environmental conditions — protection degree IP65 per IEC 60529. ** Materials. Housing and Dielectric:** Polyamide 6.6. ** Contact Plating:** Silver. ** Wire Range:** 14 plus ground — 26-14 AWG; 17 plus ground — 26-18 AWG. ** Rating:** 14 plus ground — 100 V, 11 at 6 A, 4 at 18 A; 17 plus ground — 100 V, 6 A. ** Flammability:** UL94V-0. Bayonet locking system.** Size 2.** 5 plus PE — 2.5 mm screw termination contacts for 12-14 AWG wires. ** Rated:** 400 V, 21 A. Contacts sold separately for others. 12 plus PE — 3 contacts, 2.5 mm, 14 AWG; 9 contacts — 1.9 mm, 16 AWG. 3 rated — 500 V; 21 A; 9 rated — 300 V, 11 A. 19 plus PE — 1 contact, 1.5 mm, 20 AWG, rated 250 V, 6 V. ** Cable Outlet:** PG 11 for cable OD 0.394"-0.472"; PG 13.5 OD 0.472"-0.551" .
The circular connector series C 16-3 has two housing sizes. The connectors are designed to meet the high requirements of industrial applications under harsh environmental conditions. The range includes versions with screw and crimp terminations. A selecti
