CLM-112-02-L-D-BE

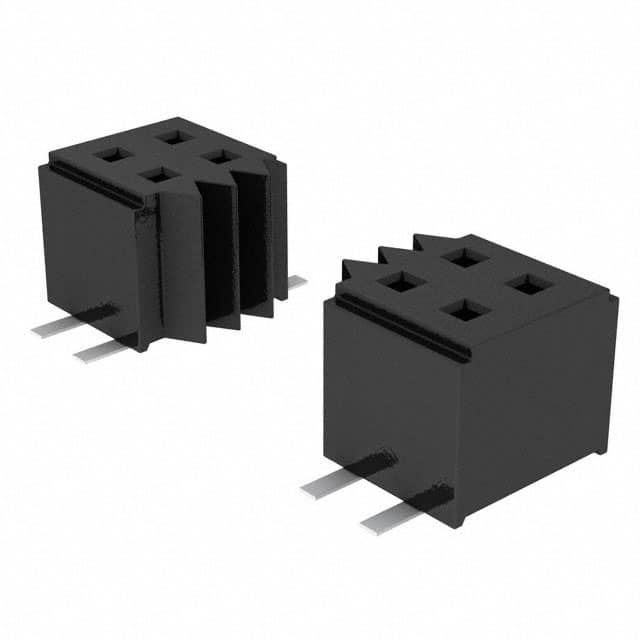

SAMTEC CLM-112-02-L-D-BE Board-To-Board Connector, 1mm, 24Contacts, Receptacle, CLM Series, Through Hole, 2Rows

24 位置 插座，底部进入 表面贴装型

得捷:
CONN RCPT 24POS 0.039 GOLD SMD

艾睿:

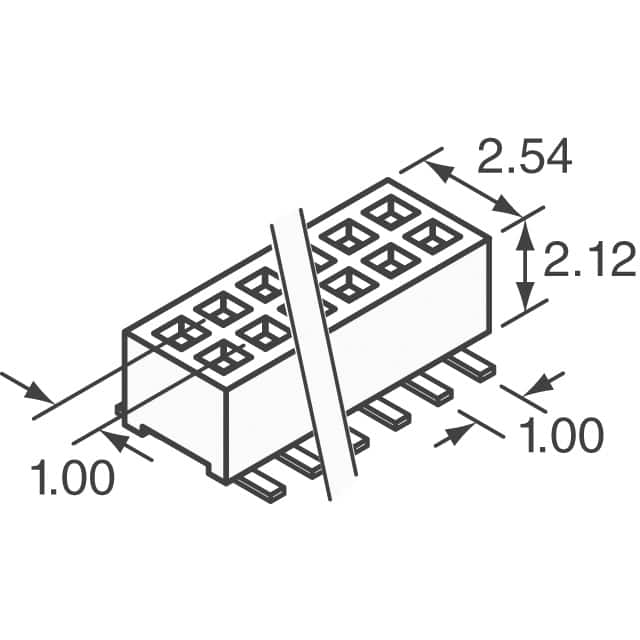

Reduce safety concerns with this socket strip CLM-112-02-L-D-BE header connector from Samtec which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This SKT connector&s;s 24 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a socket type gender. It has a straight body orientation. Its pitch is 1 mm. This is a 2-row connector. This device has a maximum current rating of 2.8 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -55 to 125 °C. CLM-112-02-L-D-BE is housed in black liquid crystal polymer. It uses the solder termination method. This product is 12.31 mm long, 2.26 mm tall and 3.81 mm deep.

安富利:
Conn Socket Strip SKT 24 POS 1mm Solder ST SMD Tube

Newark:
# SAMTEC  CLM-112-02-L-D-BE  Board-To-Board Connector, 1 mm, 24 Contacts, Receptacle, CLM Series, Through Hole, 2 Rows
