CLM-113-02-L-D

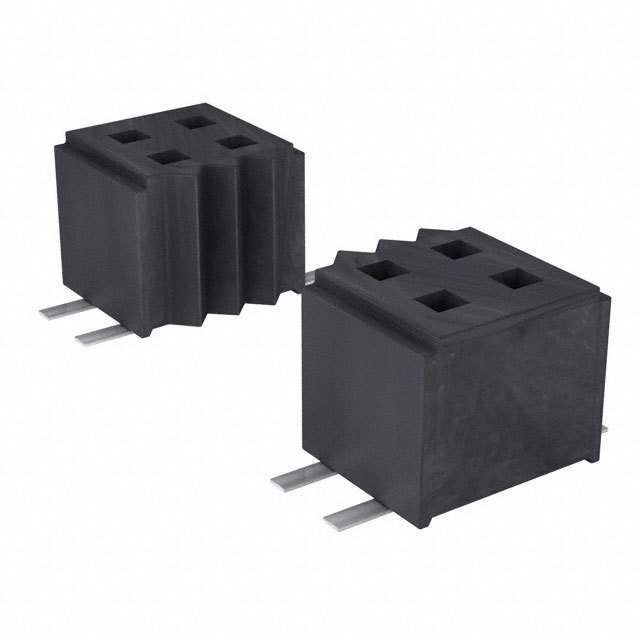

CLM-113-02-L-D图片1
CLM-113-02-L-D图片2
CLM-113-02-L-D图片3
CLM-113-02-L-D图片4
CLM-113-02-L-D图片5
CLM-113-02-L-D概述

Conn Socket Strip SKT 26POS 1mm Solder ST SMD Tube

26 Position Receptacle Connector 0.039" 1.00mm Surface Mount Gold


得捷:
CONN RCPT 26POS 0.039 GOLD SMD


艾睿:
This socket strip CLM-113-02-L-D header connector from Samtec reduces the possibility of accidentally shorting pins when a board is being used. This SKT connector&s;s 26 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 1 mm. This is a 2-row connector. It has a straight body orientation. It has a socket type gender. This device has a maximum current rating of 2.8 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. CLM-113-02-L-D is housed in black liquid crystal polymer. This product is 13.31 mm long, 2.26 mm tall and 3.81 mm deep. This connector has an operating temperature of -55 to 125 °C.


Newark:
# SAMTEC  CLM-113-02-L-D  Board-To-Board Connector, 1 mm, 26 Contacts, Receptacle, CLM Series, Surface Mount, 2 Rows


CLM-113-02-L-D中文资料参数规格
技术参数

触点数 26

极性 Female

触点电镀 Gold

排数 2

针脚数 26

拔插次数 100

额定电流Max 2.8A/触头

工作温度Max 125 ℃

工作温度Min -55 ℃

接触电阻Max 15 mΩ

封装参数

安装方式 Surface Mount

引脚间距 1.00 mm

外形尺寸

长度 13.4 mm

宽度 2.54 mm

高度 2.26 mm

引脚间距 1.00 mm

物理参数

外壳颜色 Black

颜色 Black

触点材质 Phosphor Bronze

外壳材质 Plastic

其他

产品生命周期 Active

包装方式 Tube

制造应用 -

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册

CLM-113-02-L-D引脚图与封装图

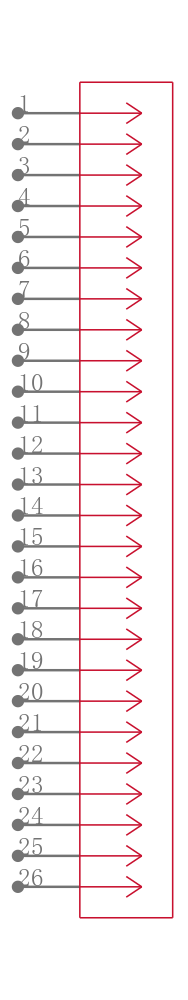

CLM-113-02-L-D引脚图
CLM-113-02-L-D封装图

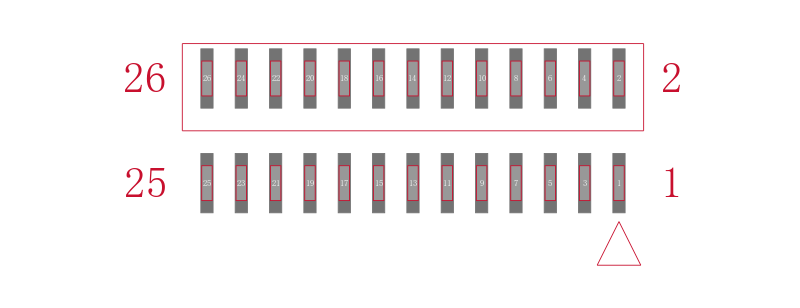

CLM-113-02-L-D封装焊盘图
在线购买CLM-113-02-L-D
型号: CLM-113-02-L-D
描述:Conn Socket Strip SKT 26POS 1mm Solder ST SMD Tube
