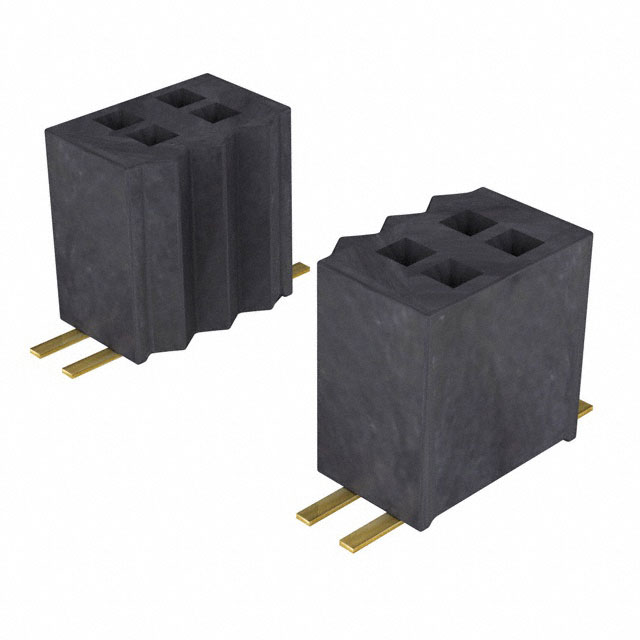

CLE-109-01-G-DV

Conn Socket Strip SKT 18POS 0.8mm Solder ST SMD Tube

18 位置 插座，通透式 0.031"（0.80mm） 表面贴装型 镀金

得捷:
CONN RCPT 18POS 0.031 GOLD SMD

艾睿:
Use this socket strip CLE-109-01-G-DV connector from Samtec when board-to-board interconnects is required. This SKT connector&s;s 18 contacts that are made out of beryllium copper and plated with gold over nickel. It has a socket type gender. It has a straight body orientation. Its pitch is 0.8 mm. This is a 2-row connector. This device has a maximum current rating of 2.7 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -55 to 125 °C. This product is 7.2 mm long, 3.3 mm tall and 4.83 mm deep. It uses the solder termination method. CLE-109-01-G-DV is housed in black liquid crystal polymer.

Newark:
# SAMTEC  CLE-109-01-G-DV  Board-To-Board Connector, 0.8 mm, 18 Contacts, Receptacle, CLE Series, Surface Mount, 2 Rows
