CLE-112-01-G-DV-A

CLE-112-01-G-DV-A图片1
CLE-112-01-G-DV-A图片2
CLE-112-01-G-DV-A图片3
CLE-112-01-G-DV-A图片4
CLE-112-01-G-DV-A概述

Conn Socket Strip SKT 24POS 0.8mm Solder ST SMD Tube

24 Position Receptacle, Pass Through Connector Surface Mount


得捷:
CONN RCPT 24POS 0.031 GOLD SMD


艾睿:
Samtec&s;s socket strip CLE-112-01-G-DV-A header connector is a great way to reduce safety concerns in projects where there is a possibility of accidentally shorting electronic components. This SKT connector&s;s 24 contacts that are made out of beryllium copper and plated with gold over nickel. Its pitch is 0.8 mm. It has a socket type gender. It has a straight body orientation. This is a 2-row connector. This device has a maximum current rating of 2.7 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. CLE-112-01-G-DV-A is housed in black liquid crystal polymer. This product is 9.6 mm long, 3.3 mm tall and 4.83 mm deep. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C.


安富利:
Conn Socket Strip SKT 24 POS 0.8mm Solder ST SMD Tube


Newark:
# SAMTEC  CLE-112-01-G-DV-A  Board-To-Board Connector, 0.8 mm, 24 Contacts, Receptacle, CLE Series, Surface Mount, 2 Rows


CLE-112-01-G-DV-A中文资料参数规格
技术参数

触点数 24

极性 Female

触点电镀 Gold

额定电流 2.7A/触头

排数 2

针脚数 24

拔插次数 100

额定电流Max 2.7A/触头

工作温度Max 125 ℃

工作温度Min -55 ℃

接触电阻Max 15 mΩ

封装参数

安装方式 Surface Mount

外形尺寸

高度 3.3 mm

物理参数

外壳颜色 Black

触点材质 Beryllium Copper

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tube

制造应用 -

符合标准

RoHS标准

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册

CLE-112-01-G-DV-A引脚图与封装图

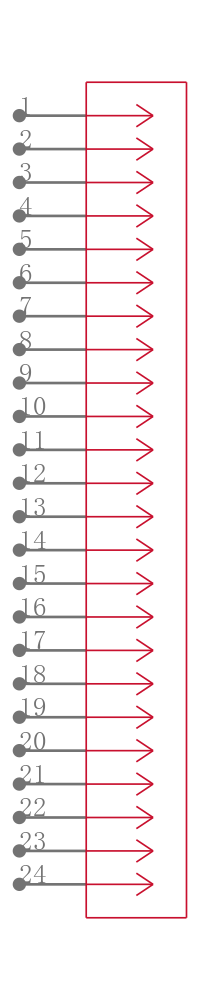

CLE-112-01-G-DV-A引脚图
CLE-112-01-G-DV-A封装图

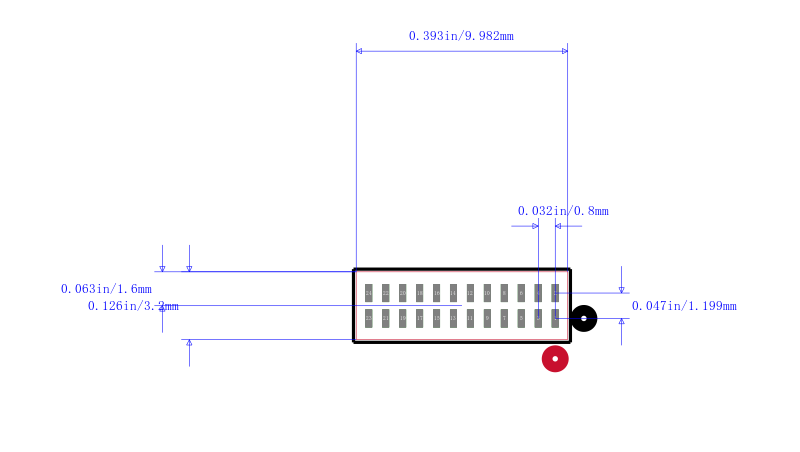

CLE-112-01-G-DV-A封装焊盘图
在线购买CLE-112-01-G-DV-A
型号: CLE-112-01-G-DV-A
描述:Conn Socket Strip SKT 24POS 0.8mm Solder ST SMD Tube
替代型号CLE-112-01-G-DV-A
型号/品牌 代替类型 替代型号对比

CLE-112-01-G-DV-A

Samtec 申泰电子

当前型号

当前型号

CLE-112-01-G-DV-A-K-TR

申泰电子

完全替代

CLE-112-01-G-DV-A和CLE-112-01-G-DV-A-K-TR的区别

CLE-112-01-G-DV-A-TR

申泰电子

完全替代

CLE-112-01-G-DV-A和CLE-112-01-G-DV-A-TR的区别
