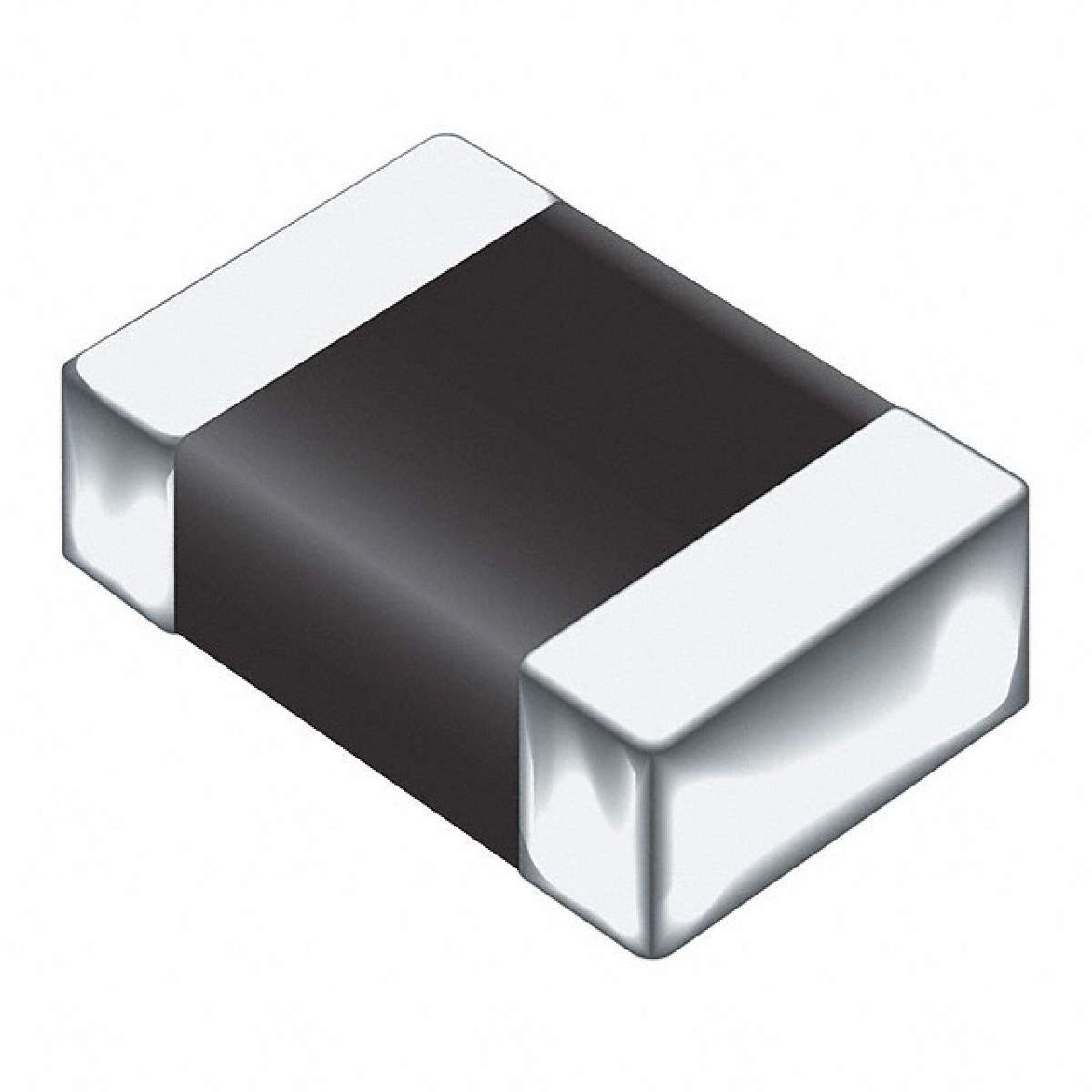

压敏电阻 CG Auto MLV 0805, 220pF AEC-Q200
The ChipGuard® MLC Series has been specifically designed to protect sensitive electronic components from electrostatic discharge damage. The MLC family has been designed to protect equipment to IEC61000-4-2, Level 4 ±8 kV Contact/±15 kV Air Discharge ESD specifications targeted for high speed USB 3.0/USB OTG, HDMI 1.4, DVI or IEEE1394 applications.
The ChipGuard® MLC Series has been manufactured to provide low 0.5 pF capacitance and leakage currents less than 50 nA with excellent clamp qualities, making the family almost transparent under normal working conditions.
**Features:**
* RoHS compliant
* ESD protection >25 kV
* Low capacitance <0.5 pF
* Low leakage current <50 nA
额定电压DC 26 V
额定电压AC 20 V
额定电流 80 A
电容 220 pF
电路数 1
钳位电压 56 V
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压DC Max 26 V
额定电压AC Max 20 V
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 0.9 mm
封装公制 2012
封装 0805
工作温度 -55℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
