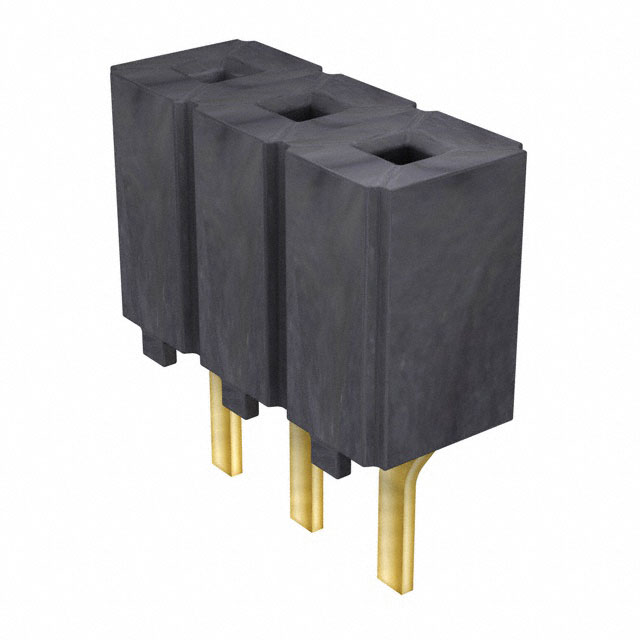

CES-103-01-S-S

Conn Socket Strip SKT 3POS 2.54mm Solder ST Thru-Hole

3 位置 插座 0.100"（2.54mm） 通孔 镀金

得捷:
CONN RCPT 3POS 0.1 GOLD PCB

艾睿:
Mounting this socket strip CES-103-01-S-S header connector from Samtec to your printed circuit board can help you support multiple physical configuration options. This SKT connector&s;s 3 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 1-row connector. Its pitch is 2.54 mm. It has a maximum voltage rating of 400 VAC. It has a straight body orientation. It has a socket type gender. This device has a maximum current rating of 5.5 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. It uses the solder termination method. CES-103-01-S-S is housed in black polyester. This product is 7.62 mm long, 5.08 mm tall and 3.05 mm deep. This connector has an operating temperature of -55 to 125 °C.

安富利:
Conn Socket Strip SKT 3 POS 2.54mm Solder ST Thru-Hole

Chip1Stop:
Conn Socket Strip SKT 3 POS 2.54mm Solder ST Thru-Hole Bulk

Verical:
Conn Socket Strip SKT 3 POS 2.54mm Solder ST Top Entry Thru-Hole Bulk

Electro Sonic:
.100" Closed Entry Low Profile Socket Strip
