CLB-153-11A3N-B-A概述

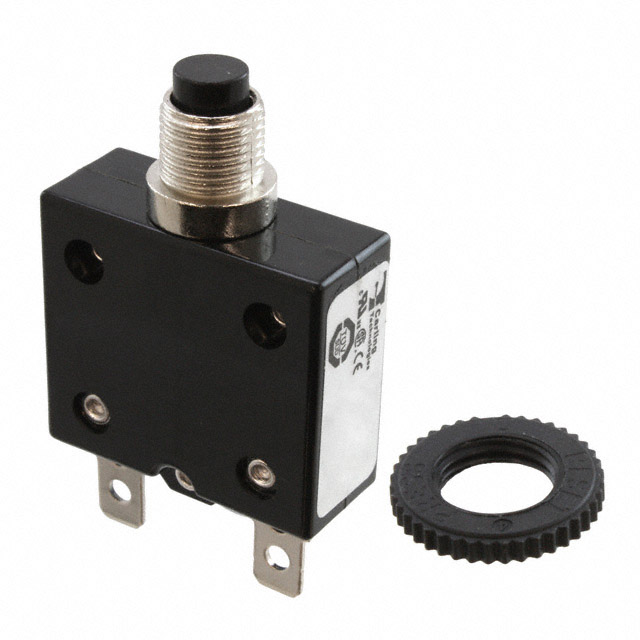

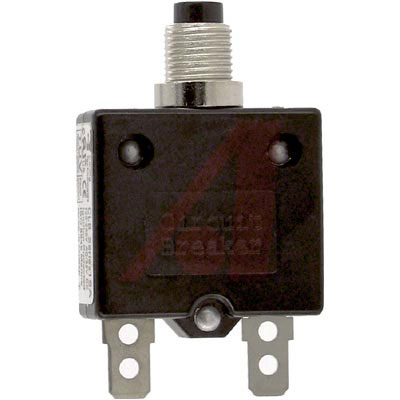

CARLING TECHNOLOGIES CLB-153-11A3N-B-A Thermal Circuit Breaker, CLB Series, 250VAC, 32VDC, 15A, 1Pole, Panel

thermal circuit breakers offer a reliable cost-effective solution and are ideal for household and commercial appliances, transportation, marine, telecommunication and power strips.

The CLB and CMB Series bushing mounted thermal circuit breakers are available with AC/DC ratings up to 30 amps, 125/250 VAC, 32 VDC, and 0.250" tabs. UL, CUL and TÜV certified.

CLB-153-11A3N-B-A中文资料参数规格

技术参数

额定电压DC 32 V

额定电压AC 250 V

工作电压 250 V

跳闸时间 0.3s ~ 2.8s

额定电流 15 A

绝缘电阻 100 MΩ

工作温度Max 60 ℃

工作温度Min -10 ℃

额定电压 250VAC, 32VDC

封装参数

安装方式 Panel

封装 -

外形尺寸

封装 -

物理参数

工作温度 -10℃ ~ 60℃

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 853620

数据手册

在线购买CLB-153-11A3N-B-A

型号： CLB-153-11A3N-B-A

制造商： Carling Technologies 嘉灵科技

描述：CARLING TECHNOLOGIES CLB-153-11A3N-B-A Thermal Circuit Breaker, CLB Series, 250VAC, 32VDC, 15A, 1Pole, Panel
