CHB-38-70001

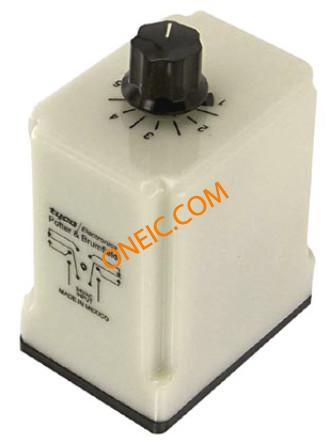

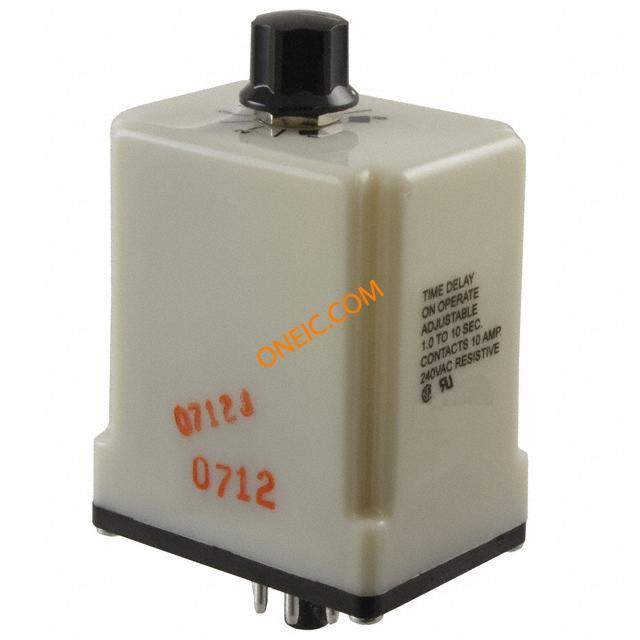

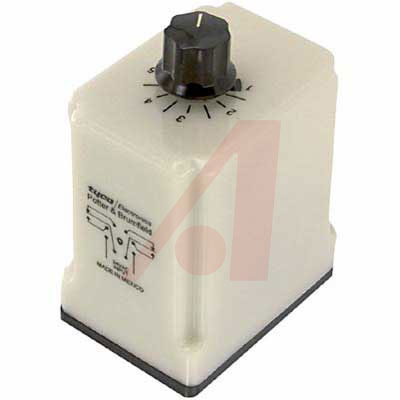

TE CONNECTIVITY / POTTER & BRUMFIELD  CHB-38-70001  延时继电器, DPDT, 10秒, 120VAC

Solid state devices reset within milliseconds. Adjustable over entire time range. Plastic enclosures.

.

*Series CH. Temperature:** –10°C to +55°C. **Tolerance:** –0, +20% of max. specified @ high end; min. specified or less @ low end. **Reset:** 125 ms. **Repeatability:** ±2%. Series CD. **Temperature:** –40°C to +55°C. **Tolerance:** ±5%. **Reset:** 60 ms. **Repeatability:** ±1%. CHB/CDB38 time delays have internal DPDT 10 amp relay. Provide delay on operate. Use 8-pin octal sockets. **Weight:** CH38 — 6 Oz. 168 g; CD38 — 9 Oz. 255 g.
