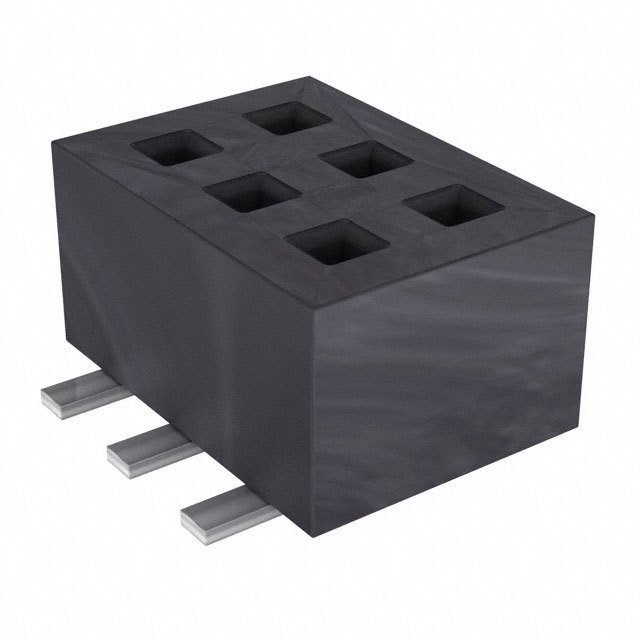

CLP-103-02-L-D

SAMTEC  CLP-103-02-L-D  板至板连接, 护罩, CLP Series, 6 触点, 插座, 1.27 mm, 表面安装　, 2 排 新

6 位置 插座 0.050"（1.27mm） 表面贴装型 镀金

得捷:
CONN RCPT 6POS 0.05 GOLD SMD

欧时:
1.27mm CLP Tiger Claw SMT socket, 6P

e络盟:
板至板连接, 护罩, CLP Series, 6 触点, 插座, 1.27 mm, 表面安装　, 2 排

艾睿:
Use this socket strip CLP-103-02-L-D connector from Samtec when board-to-board interconnects is required. This SKT connector&s;s 6 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. It has a maximum voltage rating of 340 VDC|240VAC. It has a straight body orientation. It has a socket type gender. Its pitch is 1.27 mm. This device has a maximum current rating of 3.3 A/contact. This connector has an operating temperature of -55 to 125 °C. CLP-103-02-L-D is housed in black liquid crystal polymer. It uses the solder termination method. This product is 4.24 mm long, 2.29 mm tall and 4.32 mm deep.

安富利:
Conn Socket Strip SKT 6 POS 1.27mm Solder ST SMD

Newark:
# SAMTEC  CLP-103-02-L-D  Board-To-Board Connector, 1.27 mm, 6 Contacts, Receptacle, CLP Series, Surface Mount, 2 Rows

Electro Sonic:
Board-To-Board Connector - Shrouded - 1.27 mm - 6 Contacts - Receptacle - Surface Mount - 2 Rows.
