CLP-107-02-L-D

Conn Socket Strip SKT 14POS 1.27mm Solder ST SMD Tube

14 位置 插座 0.050"（1.27mm） 表面贴装型 镀金

得捷:
CONN RCPT 14POS 0.05 GOLD SMD

欧时:
.050" Tiger Claw Rugged Reliable Dual W

艾睿:

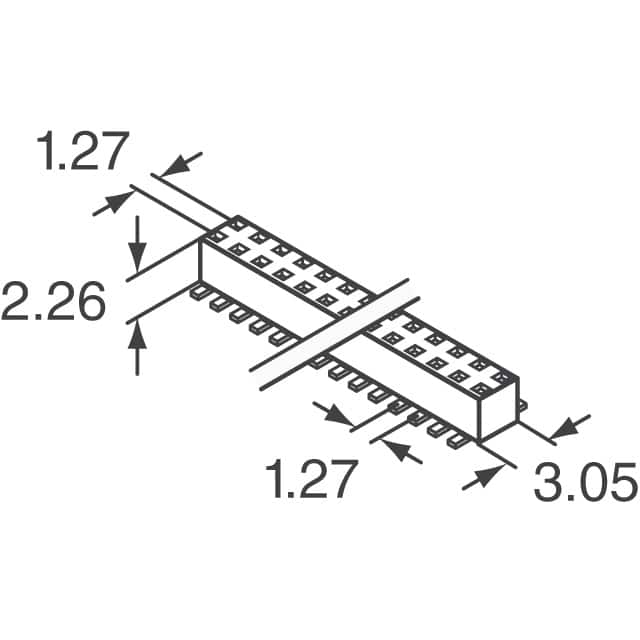

Are you looking for a solution to support physical configuration options on your PCB? Then mount this socket strip CLP-107-02-L-D header connector from Samtec on your PCB today! This SKT connector&s;s 14 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 1.27 mm. It has a socket type gender. It has a maximum voltage rating of 340 VDC|240VAC. It has a straight body orientation. This is a 2-row connector. This device has a maximum current rating of 3.3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. CLP-107-02-L-D is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. This product is 9.32 mm long, 2.29 mm tall and 4.32 mm deep.

安富利:
Conn Socket Strip SKT 14 POS 1.27mm Solder ST SMD Tube

Newark:
# SAMTEC  CLP-107-02-L-D  Board-To-Board Connector, 1.27 mm, 14 Contacts, Receptacle, CLP Series, Surface Mount, 2 Rows
