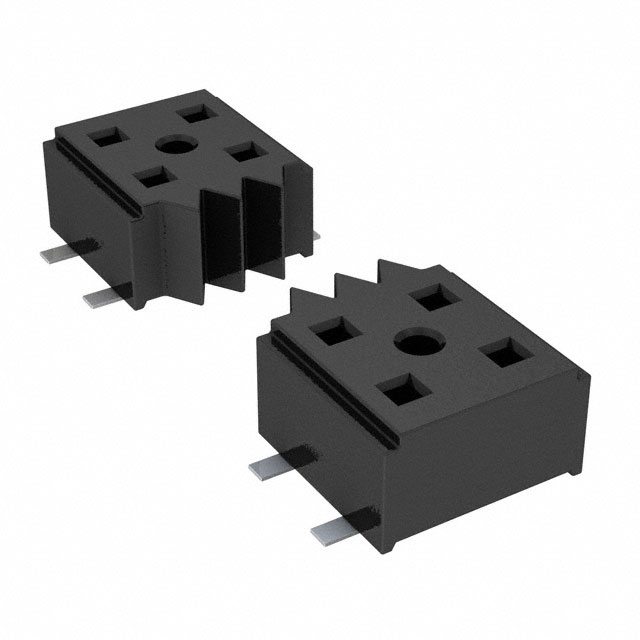

CLT-107-02-L-D-BE

Conn Socket Strip SKT 14POS 2mm Solder ST SMD Tube

The CLT series from are Tiger Claw rugged and reliable dual wipe socket strips. These low profile socket strips mates with Samtec TMM, TMMH, MTMM, MMT, TW and TSH series of connectors.

.

2mm pitch 2 to 50 contacts per row with surface mount and vertical orientation

.

High operating temperature range of -55°C to 125°C

.

10µ" gold plated contacts, socket strip with bottom entry option

.

Black liquid crystal polymer insulator material

.

Contact material is phosphor bronze

.

Contact resistance is 10mohm

.

Tiger Claw contact system

.

Complies with UL E111594 standard

.

Mating cycles is 100
