CES-112-01-T-D

SAMTEC CES-112-01-T-D Board-To-Board Connector, 2.54mm, 24Contacts, Receptacle, CES Series, Through Hole, 2Rows

24 位置 插座 0.100"（2.54mm） 通孔 锡

得捷:
CONN RCPT 24POS 0.1 TIN PCB

艾睿:

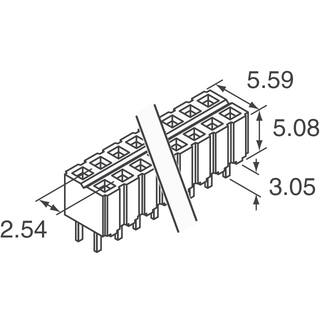

Make strong and binding connections on your circuit boards by adopting this socket strip CES-112-01-T-D connector from Samtec. This SKT connector&s;s 24 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a straight body orientation. It has a maximum voltage rating of 400 VAC. Its pitch is 2.54 mm. This is a 2-row connector. It has a socket type gender. This device has a maximum current rating of 5.5 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -55 to 105 °C. CES-112-01-T-D is housed in black polyester. It uses the solder termination method. This product is 30.48 mm long, 5.08 mm tall and 5.59 mm deep.

安富利:
Conn Socket Strip SKT 24 POS 2.54mm Solder ST Thru-Hole Tube

Newark:
# SAMTEC  CES-112-01-T-D  Board-To-Board Connector, 2.54 mm, 24 Contacts, Receptacle, CES Series, Through Hole, 2 Rows
