CES-105-02-T-D

SAMTEC  CES-105-02-T-D  板至板连接, CES Series, 10 触点, 插座, 2.54 mm, 通孔安装, 2 排 新

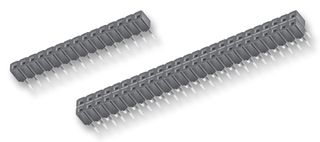

The is a 10-pole 2-row 2.54mm Closed Entry Low Profile Socket Strip with matte tin-plated phosphor bronze contact and GF polyester insulator. The CES series closed entry low profile socket strip is compatible with TLW, TSW, MTLW, MTSW, HW, EW, ZW, HTSW, HMTSW and TSM series connectors.

.

Orderable with single/dual rows -S/-D options

.

Pitch spacing is 2.54mm 1 to 50 contacts per row with straight orientation

.

High operating temperature range of -55°C to 105°C for matte tin plated contacts

.

Black glass filled polyester insulator material

.

Voltage rating is 400VAC

.

Contact resistance is 10mohm

.

Dual leaf contact system

.

Complies with UL E111594 and CSA 090871_0_000 standards

.

Contact material is phosphor bronze
