CES-124-02-T-S

SAMTEC CES-124-02-T-S Board-To-Board Connector, 2.54mm, 24Contacts, Receptacle, CES Series, Through Hole, 1Rows

24 位置 插座 0.100"（2.54mm） 通孔 锡

得捷:
CONN RCPT 24POS 0.1 TIN PCB

艾睿:

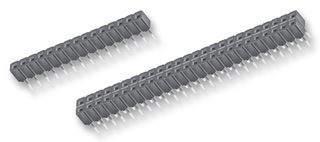

Think of Samtec&s;s socket strip CES-124-02-T-S header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This SKT connector&s;s 24 contacts that are made out of phosphor bronze and plated with tin over nickel. This is a 1-row connector. Its pitch is 2.54 mm. It has a maximum voltage rating of 400 VAC. It has a straight body orientation. It has a socket type gender. This device has a maximum current rating of 5.5 A/contact. This product is 60.96 mm long, 5.08 mm tall and 3.05 mm deep. It uses the solder termination method. CES-124-02-T-S is housed in black polyester. This connector has an operating temperature of -55 to 105 °C.

Newark:
# SAMTEC  CES-124-02-T-S  Board-To-Board Connector, 2.54 mm, 24 Contacts, Receptacle, CES Series, Through Hole, 1 Rows
