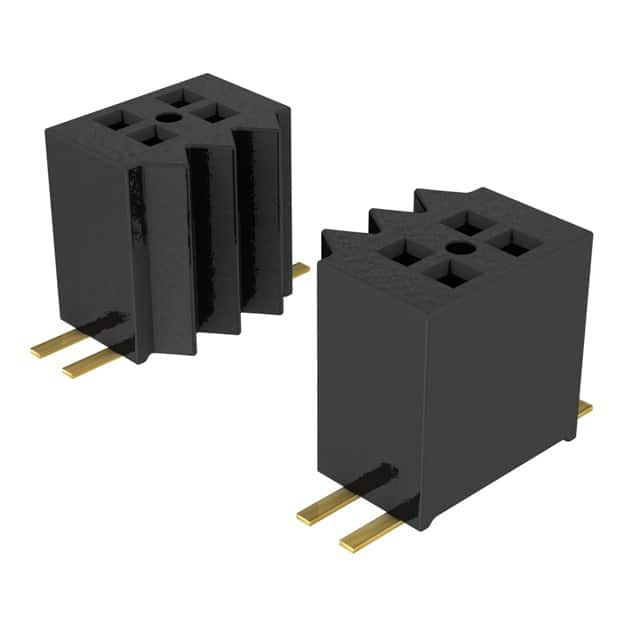

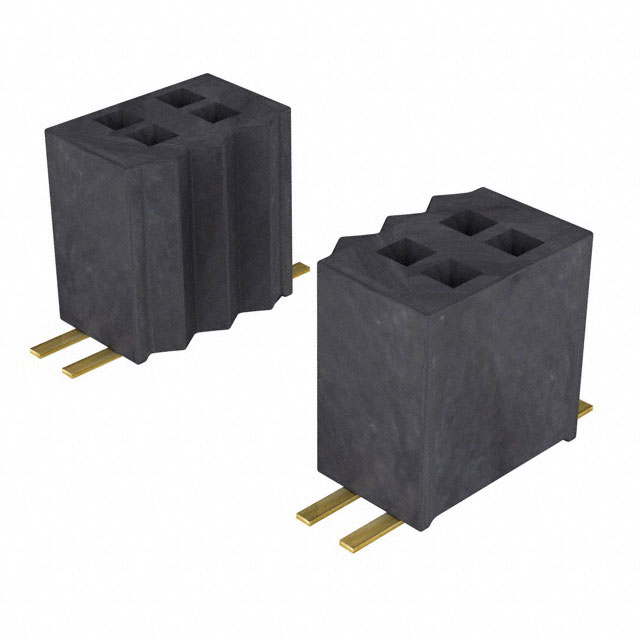

Conn Socket Strip SKT 14POS 0.8mm Solder ST SMD Tube
14 位置 插座,通透式 0.031"(0.80mm) 表面贴装型 镀金
欧时:
0.80 mm Tiger Beam Cost-effective Singl
得捷:
CONN RCPT 14POS 0.031 GOLD SMD
艾睿:
Mounting this socket strip CLE-107-01-G-DV header connector from Samtec to your printed circuit board can help you support multiple physical configuration options. This SKT connector&s;s 14 contacts that are made out of beryllium copper and plated with gold over nickel. It has a straight body orientation. Its pitch is 0.8 mm. This is a 2-row connector. It has a socket type gender. This device has a maximum current rating of 2.7 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -55 to 125 °C. CLE-107-01-G-DV is housed in black liquid crystal polymer. This product is 5.6 mm long, 3.3 mm tall and 4.83 mm deep. It uses the solder termination method.
安富利:
Conn Socket Strip SKT 14 POS 0.8mm Solder ST SMD Tube
Verical:
Conn Socket Strip SKT 14 POS 0.8mm Solder ST SMD Tube
Newark:
# SAMTEC CLE-107-01-G-DV Board-To-Board Connector, 0.8 mm, 14 Contacts, Receptacle, CLE Series, Surface Mount, 2 Rows
Electro Sonic:
0.80 mm Tiger Beam™ Cost-effective Single Beam Socket Strip
触点数 14
极性 Female
触点电镀 Gold
排数 2
针脚数 14
拔插次数 100
额定电流Max 2.7A/触头
工作温度Max 125 ℃
工作温度Min -55 ℃
接触电阻Max 15 mΩ
安装方式 Surface Mount
引脚间距 800 µm
长度 5.60 mm
宽度 3.18 mm
高度 3.3 mm
引脚间距 800 µm
外壳颜色 Black
颜色 Black
触点材质 Beryllium Copper
工作温度 -55℃ ~ 125℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Tube
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CLE-107-01-G-DV Samtec 申泰电子 | 当前型号 | 当前型号 |
CLE-107-01-G-DV-TR 申泰电子 | 功能相似 | CLE-107-01-G-DV和CLE-107-01-G-DV-TR的区别 |
