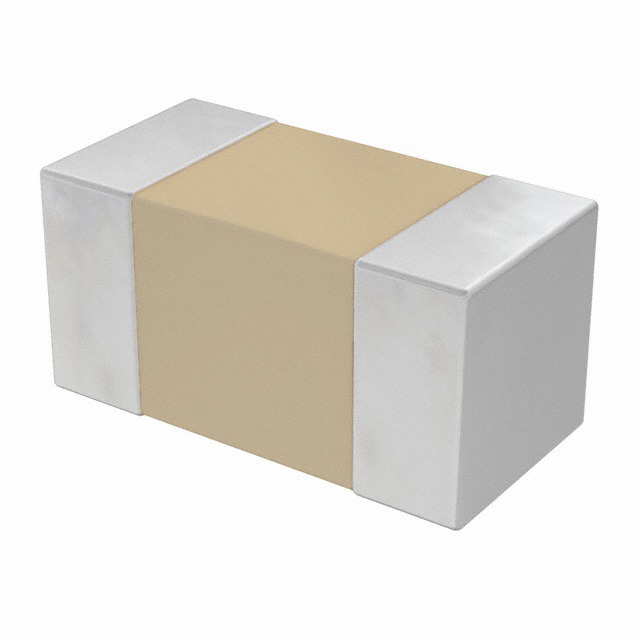

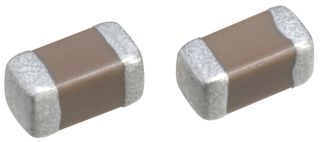

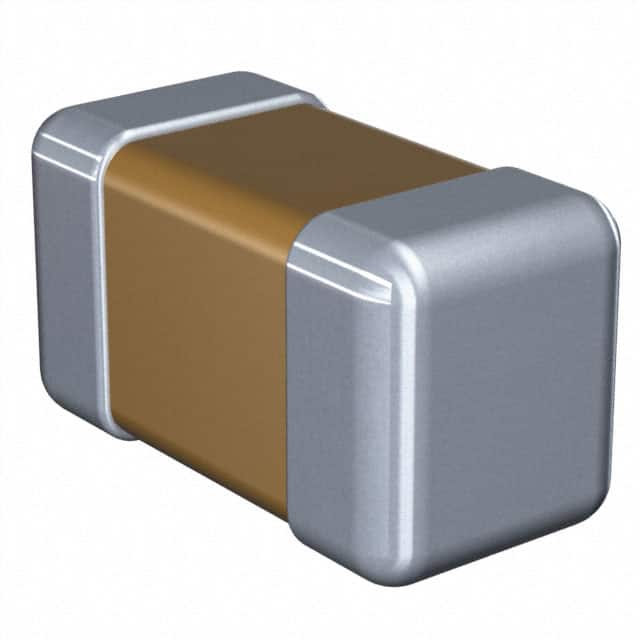

C0603X5R0J103M

CAP CER 10000pF 6.3V X5R 0201

Features

• High capacitance has been achieved through precision

technologies that enable the use of multiple thinner

ceramic dielectric layers.

• A monolithic structure ensures superior mechanical

strength and reliability.

• High-accuracy automatic mounting is facilitated through

the maintenance of very precise dimensional tolerances.

• Composed of only ceramics and metals, these

capacitors provide extremely dependable performance,

exhibiting virtually no degradation even when subjected to

temperature extremes.

• Low stray capacitance ensures high conformity with

nominal values, thereby simplifying the circuit design

process.

• Low residual inductance assures superior frequency

characteristics.

• Because electrostatic capacity has been obtained up to

the electrolytic capacitor range, these capacitors offer

long service life and are optimally suited for power supply

designs that require high levels of reliability.

• Owing to their low ESR and excellent frequency

characteristics, these products are optimally suited for

high frequency and high-density type power supplies

Applications

• Electronics equipment

• Mobile communications equipment

• Office automation equipment

• Automotive electronics

• Test and measurement equipment

• Hybrid ICs, etc.

• Decoupling

• Smoothing

• Charge pump
