CIRRUS LOGIC CRD1601-120W-Z PFC, 120W, REF DESIGN BOARD

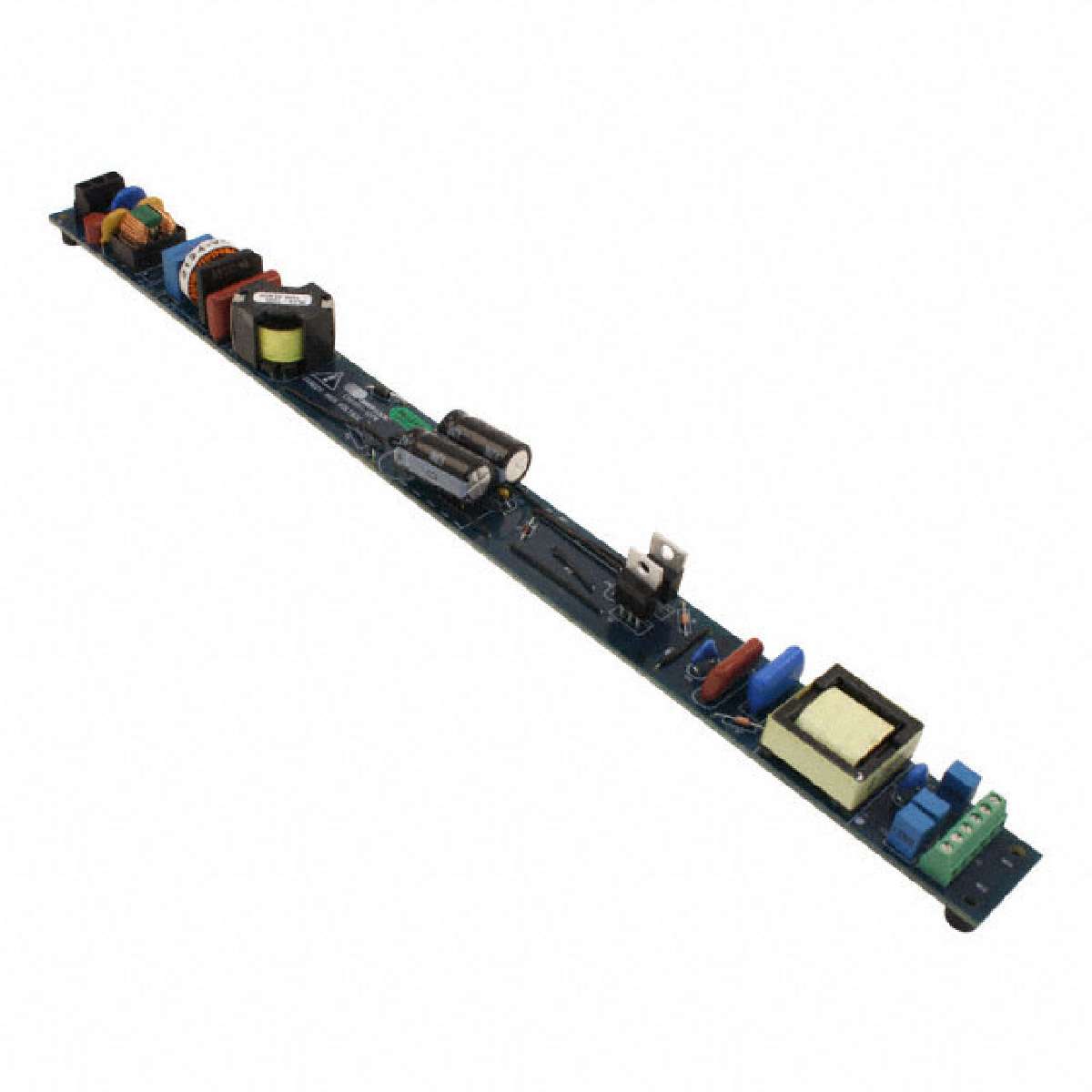

The board demonstrates the performance of the CS1601 digital PFC controller in an electronic ballast application. The board is 95 percent efficient at full load, and has been tailored for uses with a resonant second stage driver to power up to two T5 fluorescent lamps. The CRD1601 has been designed to fit into a slimline T5 fluorescent electronic ballast form factor.

.

120W output power

.

108VAC to 305VAC input voltage

.

460V output voltage

.

Best in class THD, power factor, and efficiency

.

Variable frequency discontinuous conduction mode operation

.

30% fewer external components required, smaller system designs
