CC2A23

AMPHENOL ADVANCED SENSORS  CC2A23  湿度传感器, 2 %, 3.3 V, 0% 至 100% 相对湿度, LCC, 8 引脚, 7 s

ChipCap 2 offers the most advanced and cost effective humidity and temperature sensing solution for virtually any type of application.

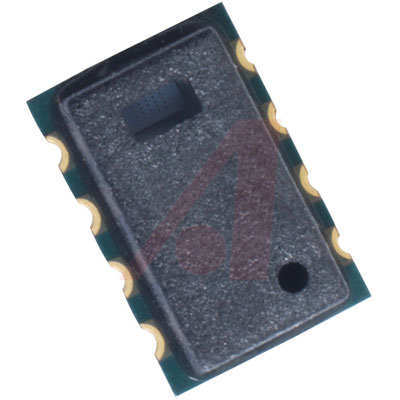

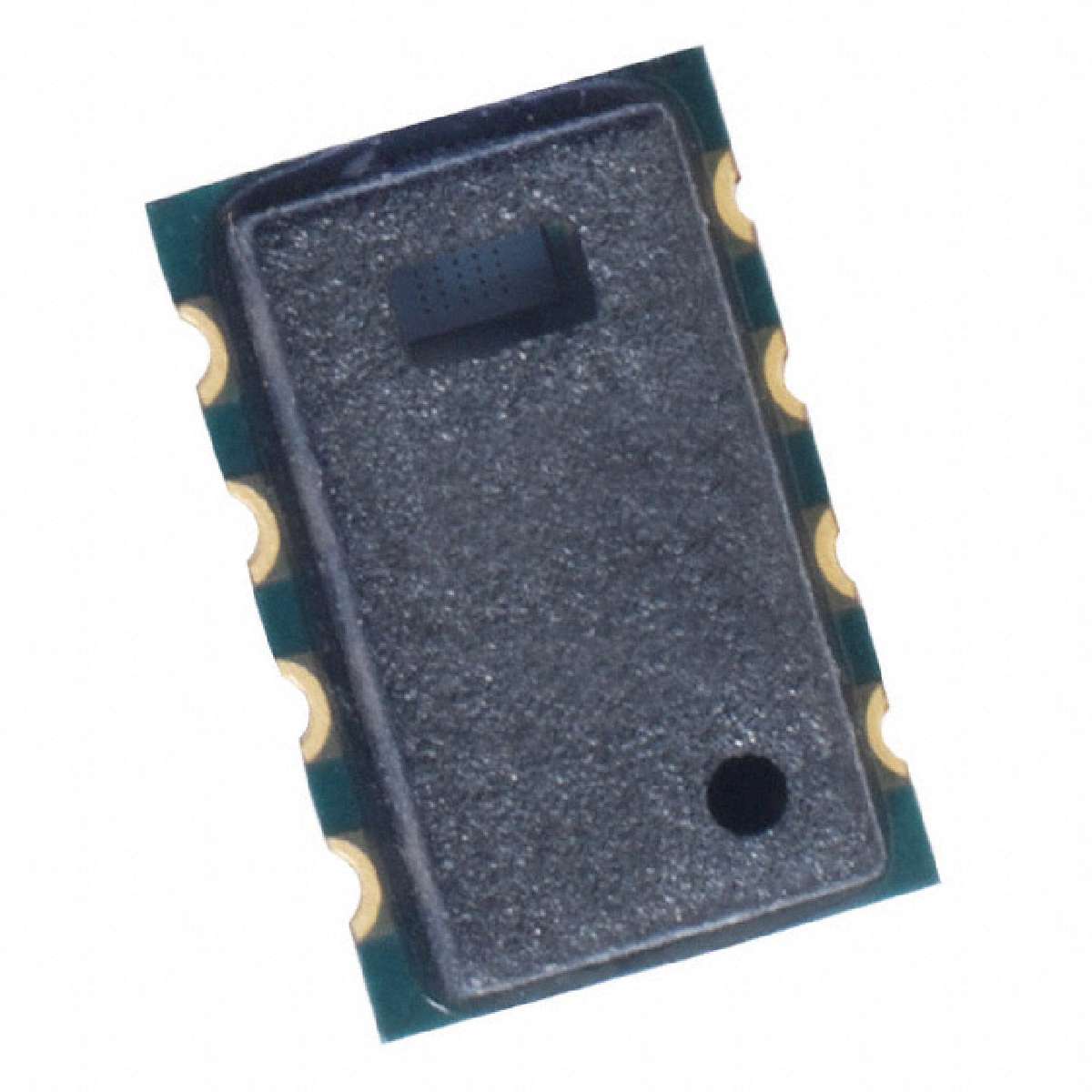

A capacitive polymer sensor chip and a CMOS integrated circuit with EEPROM are integrated into one embedded system in a reflow solderable SMD package.

Individually calibrated and tested, ChipCap 2 performs at ±2% from 20% to 80% RH ±3% over entire humidity range, and is simple and ready to use without further calibration or temperature compensation.

**Features:**

* Fully Calibrated and Temperature Compensated

* Digital or Analog Output with Alarm Function

* Precision & Accuracy ±2% RH, ±0.3°C, 14 bit

* Free Operating Voltage Min. 2.7 V to Max. 5.5 V

* Low Current Consumption

* SMD Package for Automated Assembly

* Reliable in Harsh Environments
