0603 470nF -20%~80% 10V Y5V
0.47µF -20%, +80% 10V Ceramic Capacitor Y5V F 0603 1608 Metric
得捷:
CAP CER 0.47UF 10V Y5V 0603
艾睿:

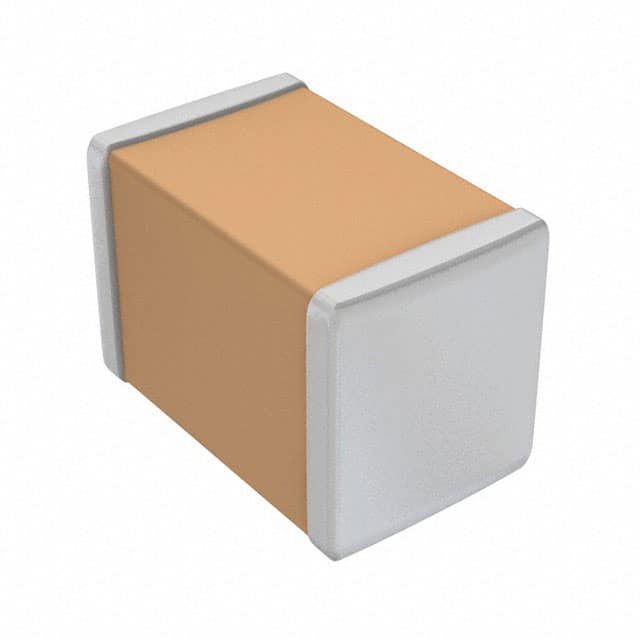

This CL10F474ZP8NNNC multilayer ceramic capacitor MLCC from Samsung Electro-Mechanics consists of alternating layers of ceramic, which acts as the dielectric, and a metal layer, which acts as the electrodes. It can withstand a voltage of 10 VDC. This MLCC capacitor has a maximum operating temperature of 85 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This product is 1.6 mm long, 0.8 mm tall and 0.8 mm deep. Its capacitance value is 0.47uF.
Chip1Stop:
Cap Ceramic 0.47uF 10VDC Y5V -20% to 80% SMD 0603 Paper T/R
Verical:
Cap Ceramic 0.47uF 10V Y5V -20% to 80% Pad SMD 0603 85C T/R
额定电压DC 10.0 V
电容 470000 pF
容差 +80/-20%
电介质特性 Y5V
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 10 V
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.8 mm
封装公制 1608
封装 0603
材质 Y5V/-30℃~+85℃
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CL10F474ZP8NNNC Samsung 三星 | 当前型号 | 当前型号 |
CL10F474ZB8NNNC 三星 | 功能相似 | CL10F474ZP8NNNC和CL10F474ZB8NNNC的区别 |
CL10F474ZA8NNNC 三星 | 功能相似 | CL10F474ZP8NNNC和CL10F474ZA8NNNC的区别 |
CL10F474ZA8NNND 三星 | 功能相似 | CL10F474ZP8NNNC和CL10F474ZA8NNND的区别 |
