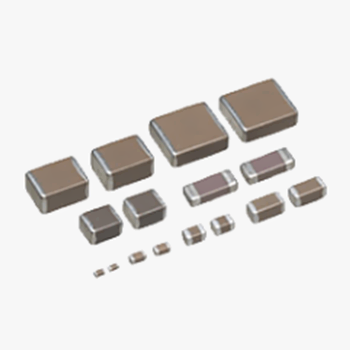

MLCC-多层陶瓷电容器
MLCC-多层陶瓷器
立创商城:
56pF ±5% 25V
得捷:
CAP CER 56PF 25V C0G/NP0 0201
艾睿:

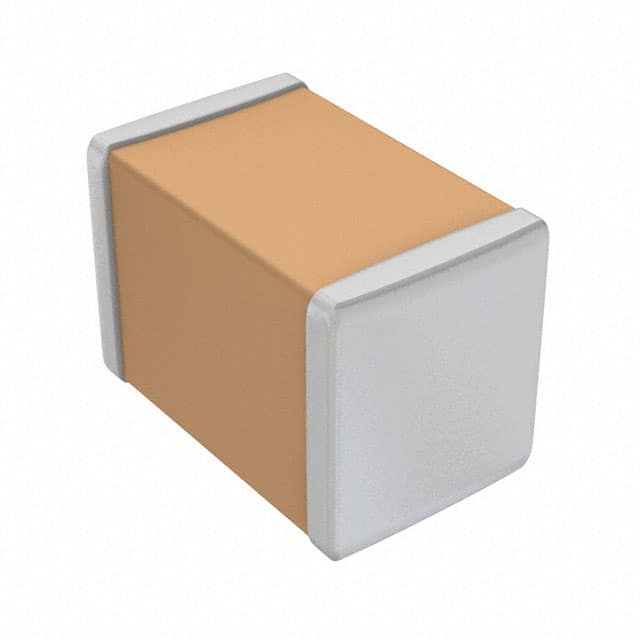

Do you need a non-polarized capacitor? This CL03C560JA3ANNC multilayer ceramic capacitor from Samsung Electro-Mechanics can be connected either to positive or to negative voltage as you please! It can withstand a voltage of 25 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has a tolerance of 5%. This product is 0.6 mm long, 0.3 mm tall and 0.3 mm deep. Its capacitance value is 56pF.
安富利:
Cap Ceramic 56pF 25V C0G 5% SMD 0201 125°C Paper T/R
额定电压DC 25.0 V
电容 56 pF
容差 ±5 %
电介质特性 C0G/NP0
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 25 V
安装方式 Surface Mount
封装公制 0603
封装 0201
长度 0.6 mm
宽度 0.3 mm
高度 0.3 mm
封装公制 0603
封装 0201
厚度 0.3 mm
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Obsolete
包装方式 Tape & Reel TR
最小包装 10000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CL03C560JA3ANNC Samsung 三星 | 当前型号 | 当前型号 |
GRM1555C1E560JA01D 村田 | 类似代替 | CL03C560JA3ANNC和GRM1555C1E560JA01D的区别 |
CL03C560JA3NNNC 三星 | 类似代替 | CL03C560JA3ANNC和CL03C560JA3NNNC的区别 |
