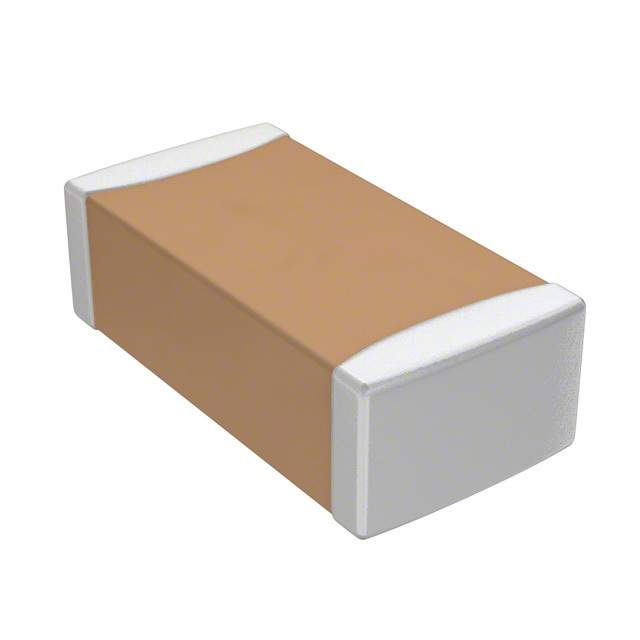

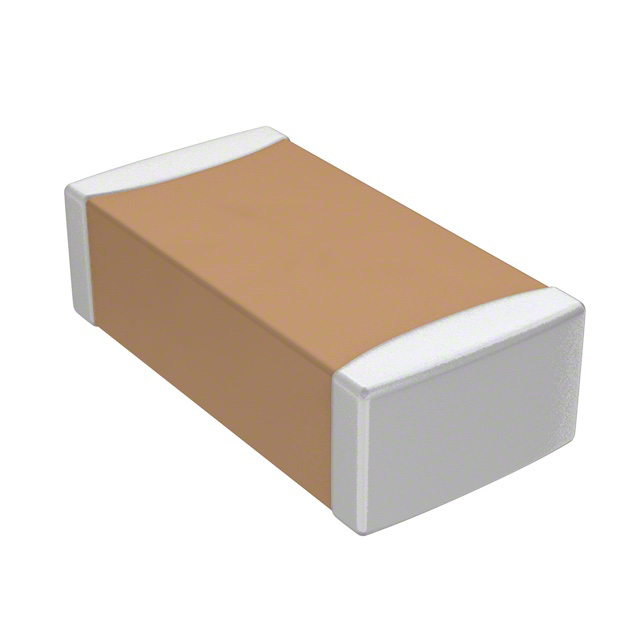

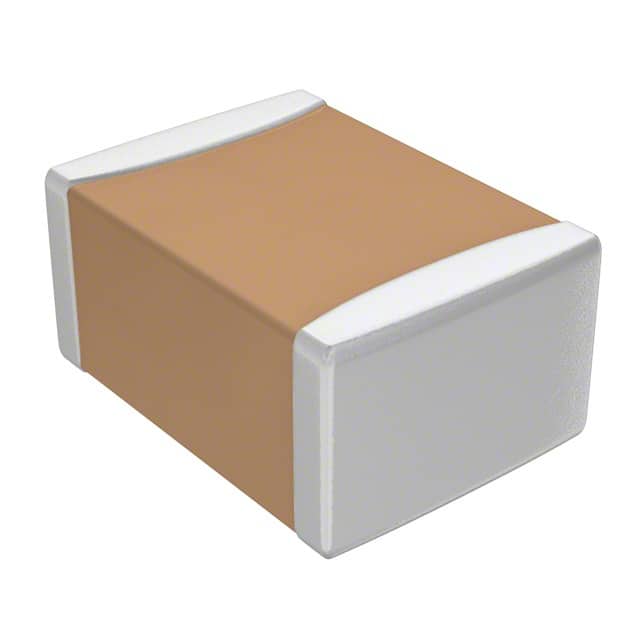

CL31系列 1206 0.5 pF 50 V ±0.25 pF C0G SMD 多层陶瓷电容
±0.25pF 50V 陶瓷器 C0G,NP0 1206(3216 公制)
得捷:
CAP CER 0.5PF 50V NP0 1206
艾睿:
This CL31C0R5CBCNNND multilayer ceramic capacitor from Samsung Electro-Mechanics offers high stability and low losses for resonant circuit applications. It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. Its capacitance value is 0.5pF. This product is 3.2 mm long, 0.85 mm tall and 1.6 mm deep.
富昌:
CL31系列 1206 0.5 pF 50 V ±0.25 pF C0G SMD 多层陶瓷电容
Verical:
Cap Ceramic 0.5pF 50V C0G 0.25pF Pad SMD 1206 125C T/R
额定电压DC 50.0 V
电容 0.5 pF
容差 ±0.25 pF
电介质特性 C0G/NP0
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 0.85 mm
封装公制 3216
封装 1206
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CL31C0R5CBCNNND Samsung 三星 | 当前型号 | 当前型号 |
CL31C0R5CBCNNNC 三星 | 完全替代 | CL31C0R5CBCNNND和CL31C0R5CBCNNNC的区别 |
NMC1206NPO0R5C50TRPF NIC | 类似代替 | CL31C0R5CBCNNND和NMC1206NPO0R5C50TRPF的区别 |
