C440C334K5R5TA

C440C334K5R5TA图片1
C440C334K5R5TA图片2
C440C334K5R5TA图片3
C440C334K5R5TA图片4
C440C334K5R5TA图片5
C440C334K5R5TA图片6
C440C334K5R5TA图片7
C440C334K5R5TA图片8
C440C334K5R5TA图片9
C440C334K5R5TA概述

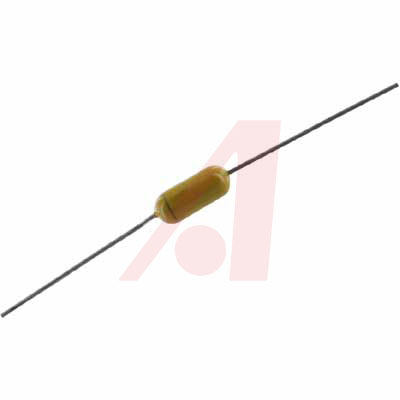

Cap Ceramic 0.33uF 50V X7R 10% Axial 125℃ Bulk

* **Working Voltage:**

C0G - 50 & 100

X7R - 50 & 100

Z5U - 50& 100

* **Dielectric:**

C0G - 0± 30PPM / -55 C to + 125 C

X7R - ± 15% from -55 C to + 125 C

Z5U - ± 22% / - 56% from + 10 C to + 85 C

* ** Tolerance: **

C0G - ±0.5pF, ±1%,±2%, ±5%,±10%

X7R - ±10%, ± 20%, +80% / -20%, +100% / -0%

Z5U - ±20%, +80% / -20%

Multilayer ceramic capacitors are available in a variety of physical sizes and configurations, including leaded devices and surface mounted chips. Leaded styles include molded and conformally coated parts with axial and radial leads. Ceramic dielectric materials can be formulated with a wide range of characteristics. The EIA standard for ceramic dielectric capacitors RS-198 divides ceramic dielectrics into the following classes: Class I, Class II and Class III.
.
* Class I:** Temperature compensating capacitors, suitable for resonant circuit application or other applications where high Q and stability of capacitance characteristics are required. **Class II:** Stable capacitors, suitable for bypass or coupling applications or frequency discriminating circuits where Q and stability of capacitance characteristics are not of major importance.** Class III:** General purpose capacitors, suitable for by-pass coupling or other appllications in which dielectic losses, high insulation resistance and stability of capacitance characteristics are of little or no importance.
C440C334K5R5TA中文资料参数规格
技术参数

额定电压DC 50.0 V

电容 0.33 µF

容差 ±10 %

电介质特性 X7R

工作温度Max 125 ℃

工作温度Min -55 ℃

额定电压 50 VDC

封装参数

安装方式 Through Hole

引脚数 2

封装 Conformally Coated

外形尺寸

长度 6.6 mm

封装 Conformally Coated

物理参数

工作温度 -55℃ ~ 125℃

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

C440C334K5R5TA引脚图与封装图

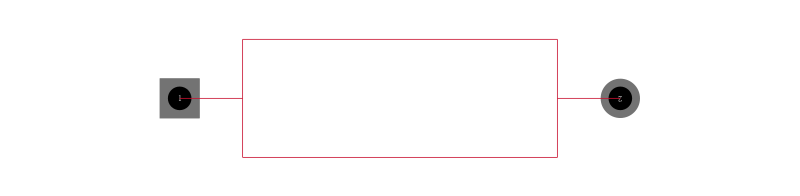

C440C334K5R5TA引脚图
C440C334K5R5TA封装图

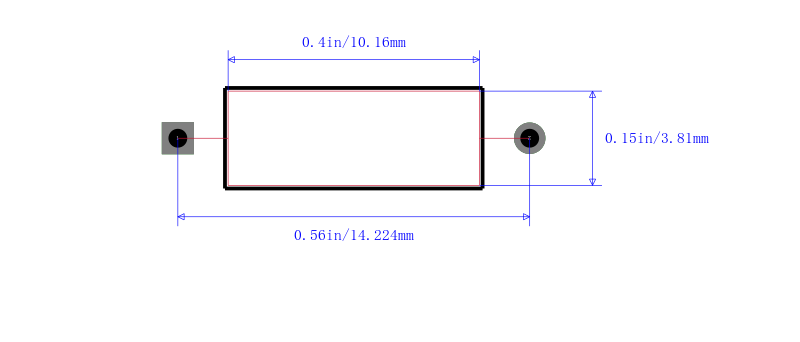

C440C334K5R5TA封装焊盘图
