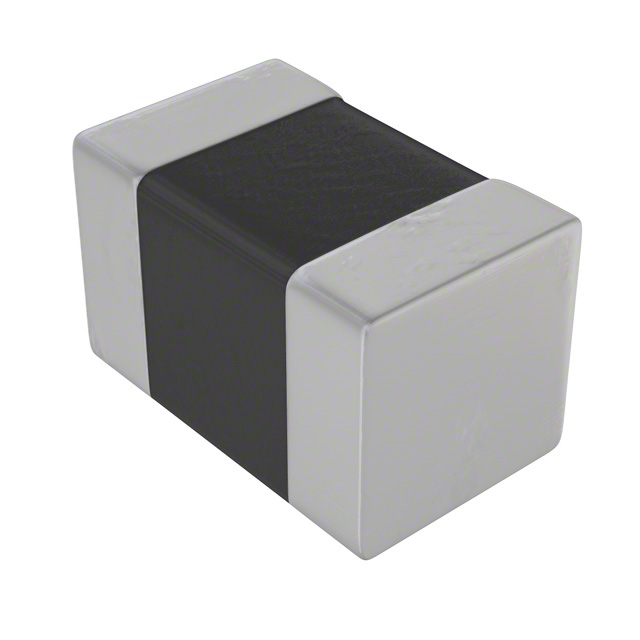

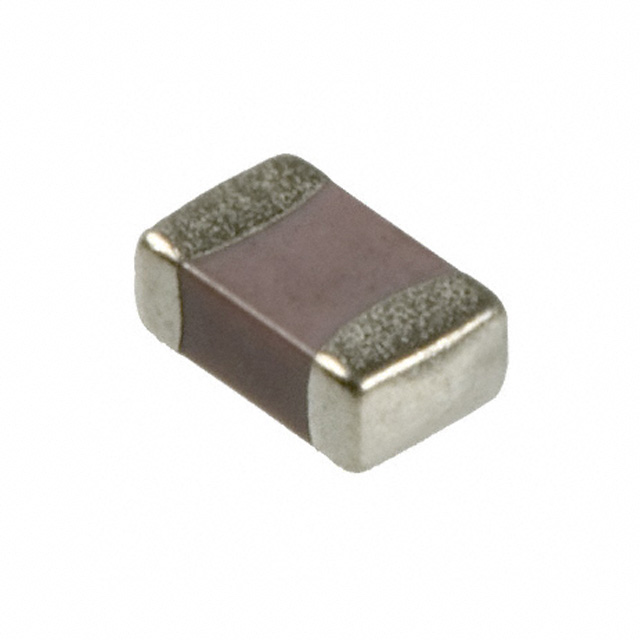

Cap Ceramic 0.0018uF 50V C0G 2% Pad SMD 0805 125℃ T/R
SMD Comm C0G, Ceramic, Commercial Grade, 1800 pF, 2%, 50 VDC, C0G, SMD, MLCC, Ultra-Stable, Low Loss, Class I, 0805
得捷:
CAP CER 1800PF 50V NP0 0805
贸泽:
Multilayer Ceramic Capacitors MLCC - SMD/SMT 50volts 1800pF C0G 2%
艾睿:
Do you need a capacitor with a large capacitance but in a small package? Then you must be looking for this C0805C182G5GACTU multilayer ceramic capacitor from Kemet! It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Its capacitance value is 0.0018uF. This product is 2 mm long, 0.9 mm tall and 1.25 mm deep. It has a tolerance of 2%.
安富利:
Cap Ceramic 0.0018uF 50V C0G 2% SMD 0805 125°C Paper T/R
Verical:
Cap Ceramic 0.0018uF 50V C0G 2% Pad SMD 0805 125C Extreme Low ESR T/R
额定电压DC 50 V
绝缘电阻 100 GΩ
电容 1800 pF
容差 ±2 %
工作温度Max 125 ℃
工作温度Min 55 ℃
额定电压 50 V
安装方式 Surface Mount

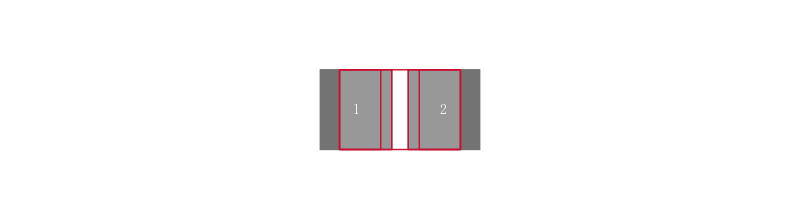

封装公制 2012
封装 0805

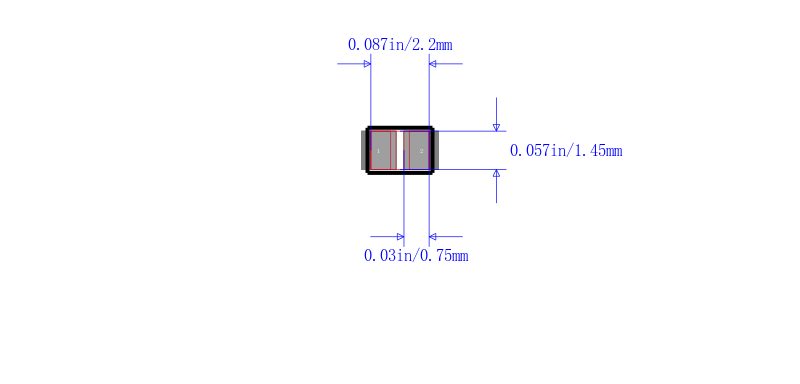

引脚间距 0.75 mm
长度 2 mm
宽度 1.25 mm
高度 0.9 mm
封装公制 2012
封装 0805
引脚间距 0.75 mm
介质材料 Ceramic
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
C0805C182G5GACTU KEMET Corporation 基美 | 当前型号 | 当前型号 |
C0805C182J5GACTU 基美 | 功能相似 | C0805C182G5GACTU和C0805C182J5GACTU的区别 |
