C0402C300F5GACTU

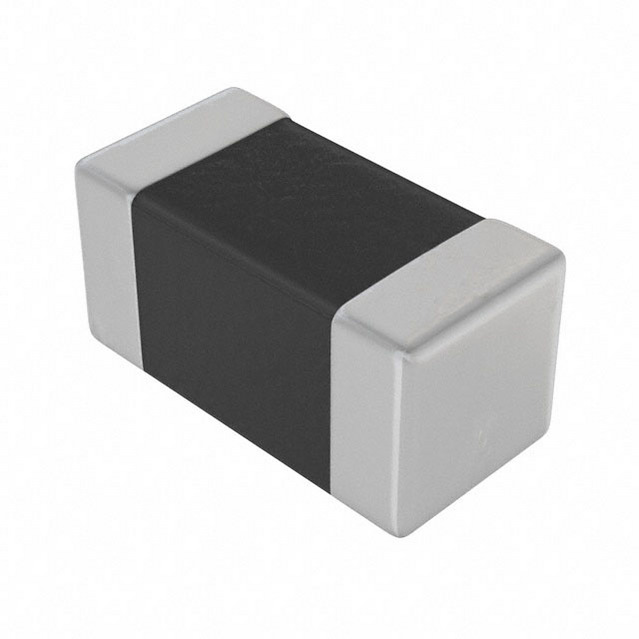

C0402C300F5GACTU图片1

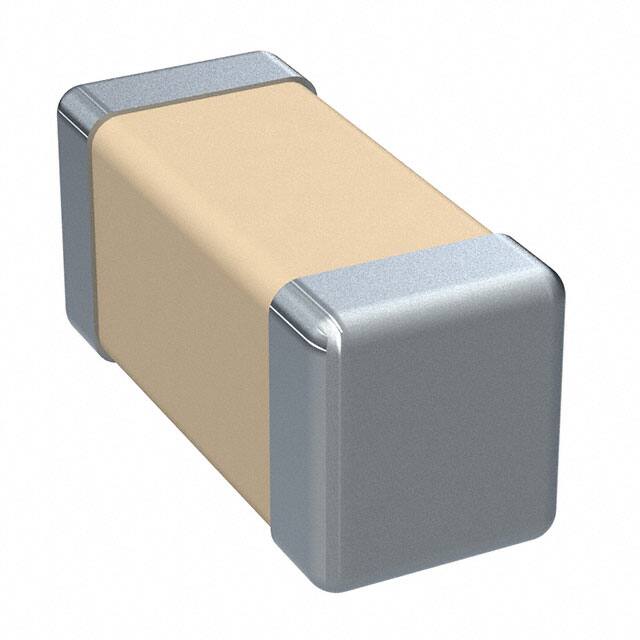

C0402C300F5GACTU图片2

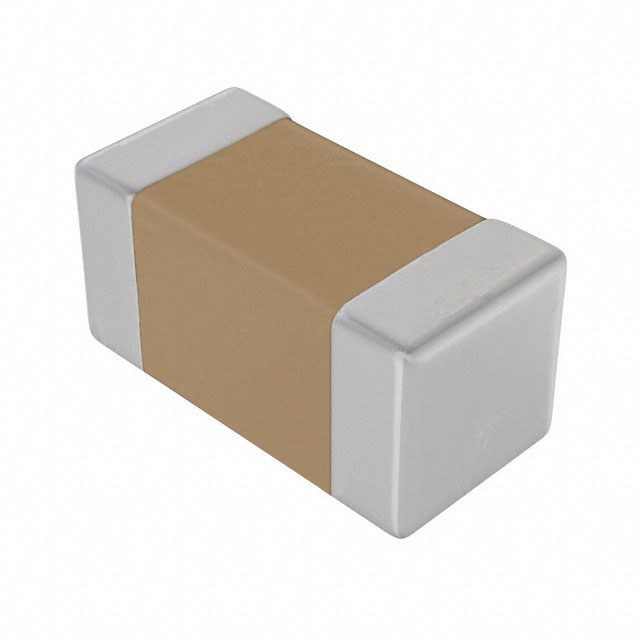

C0402C300F5GACTU图片3
C0402C300F5GACTU图片4
C0402C300F5GACTU概述

Cap Ceramic 30pF 50V C0G 1% SMD 0402 125℃ Paper T/R

SMD Comm C0G, Ceramic, Commercial Grade, 30 pF, 1%, 50 VDC, C0G, SMD, MLCC, Ultra-Stable, Low Loss, Class I, 0402


得捷:
CAP CER 30PF 50V NP0 0402


艾睿:
With alternating layers of ceramic acting as the dielectric and electrodes, this C0402C300F5GACTU multilayer ceramic capacitor from Kemet achieves a large capacitance in a small package. It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 1 mm long, 0.5 mm tall and 0.5 mm deep. It has a tolerance of 1%. Its capacitance value is 30pF.


安富利:
Cap Ceramic 30pF 50V C0G 1% SMD 0402 125°C Paper T/R


C0402C300F5GACTU中文资料参数规格
技术参数

额定电压DC 50.0 V

绝缘电阻 100 GΩ

电容 30 pF

容差 ±1 %

工作温度Max 125 ℃

工作温度Min -55 ℃

额定电压 50 V

封装参数

安装方式 Surface Mount

封装公制 1005

封装 0402

引脚间距 0.3 mm

外形尺寸

长度 1 mm

宽度 0.5 mm

高度 0.5 mm

封装公制 1005

封装 0402

引脚间距 0.3 mm

物理参数

介质材料 Ceramic

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

C0402C300F5GACTU引脚图与封装图
C0402C300F5GACTU引脚图
C0402C300F5GACTU封装图

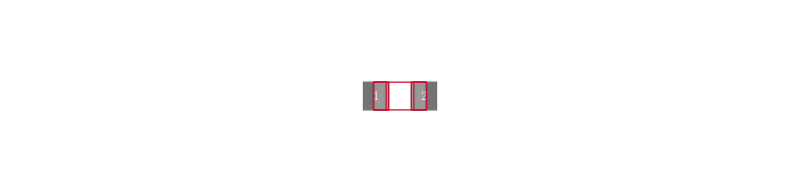

C0402C300F5GACTU封装焊盘图
在线购买C0402C300F5GACTU
型号: C0402C300F5GACTU
描述:Cap Ceramic 30pF 50V C0G 1% SMD 0402 125℃ Paper T/R
替代型号C0402C300F5GACTU
型号/品牌 代替类型 替代型号对比

C0402C300F5GACTU

KEMET Corporation 基美

当前型号

当前型号

C0402C300J5GACTU

基美

类似代替

C0402C300F5GACTU和C0402C300J5GACTU的区别

C1005C0G1H300J

东电化

功能相似

C0402C300F5GACTU和C1005C0G1H300J的区别

04025U300F4T2A

艾维克斯

功能相似

C0402C300F5GACTU和04025U300F4T2A的区别
