C1812C472J1GACTU

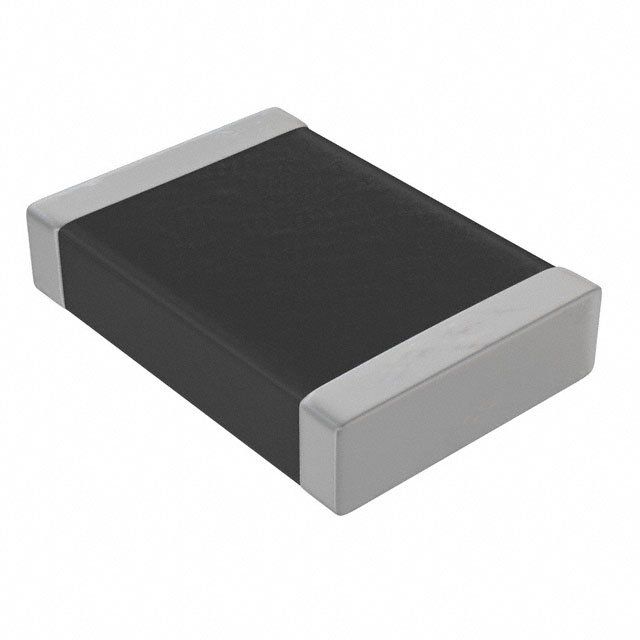

C1812C472J1GACTU图片1
C1812C472J1GACTU图片2
C1812C472J1GACTU图片3
C1812C472J1GACTU概述

Cap Ceramic 0.0047uF 100V C0G 5% SMD 1812 125℃ Plastic T/R

SMD Comm C0G, Ceramic, Commercial Grade, 4700 pF, 5%, 100 VDC, C0G, SMD, MLCC, Ultra-Stable, Low Loss, Class I, 1812


得捷:
CAP CER 4700PF 100V NP0 1812


贸泽:
Multilayer Ceramic Capacitors MLCC - SMD/SMT 100volts 4700pF C0G 5%


艾睿:
Since this C1812C472J1GACTU multilayer ceramic capacitor from Kemet has multiple layers of dielectric and electrodes, you&s;ll be getting high stability and low losses for resonant circuit applications. It can withstand a voltage of 100 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has a tolerance of 5%. This product is 4.5 mm long, 1 mm tall and 3.2 mm deep. Its capacitance value is 0.0047uF.


安富利:
Cap Ceramic 0.0047uF 100V C0G 5% SMD 1812 125°C Plastic T/R


Verical:
Cap Ceramic 0.0047uF 100V C0G 5% Pad SMD 1812 125C Extreme Low ESR T/R


C1812C472J1GACTU中文资料参数规格
技术参数

额定电压DC 100 V

绝缘电阻 100 GΩ

电容 0.0047 µF

容差 ±5 %

工作温度Max 125 ℃

工作温度Min 55 ℃

额定电压 100 V

封装参数

安装方式 Surface Mount

封装公制 4832

封装 1812

外形尺寸

长度 4.5 mm

宽度 3.2 mm

高度 1 mm

封装公制 4832

封装 1812

物理参数

介质材料 Ceramic

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

C1812C472J1GACTU引脚图与封装图
C1812C472J1GACTU引脚图

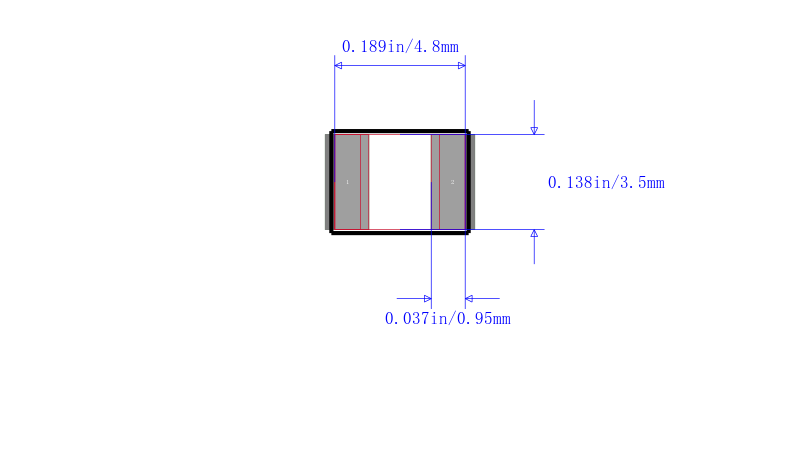

C1812C472J1GACTU封装图
C1812C472J1GACTU封装焊盘图
