C2225C474M2RACTU

C2225C474M2RACTU图片1
C2225C474M2RACTU概述

Cap Ceramic 0.47uF 200V X7R 20% SMD 2225 125℃ Plastic T/R

SMD Comm X7R, Ceramic, Commercial Grade, 0.47 uF, 20%, 200 VDC, X7R, SMD, MLCC, Temperature Stable, Class II, 2225


得捷:
CAP CER 0.47UF 200V X7R 2225


艾睿:
Use its standard classification system to find out what this C2225C474M2RACTU multilayer ceramic capacitor from Kemet can do for you! It can withstand a voltage of 200 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This product is 5.6 mm long, 1.3 mm tall and 6.4 mm deep. Its capacitance value is 0.47uF. It has a tolerance of 20%.


安富利:
Cap Ceramic 0.47uF 200V X7R 20% SMD 2225 125°C Plastic T/R


C2225C474M2RACTU中文资料参数规格
技术参数

额定电压DC 200 V

绝缘电阻 2.128 GΩ

电容 0.47 µF

容差 ±20 %

电介质特性 X7R

工作温度Max 125 ℃

工作温度Min -55 ℃

额定电压 200 V

封装参数

安装方式 Surface Mount

封装公制 5763

封装 2225

外形尺寸

宽度 6.4 mm

高度 1.3 mm

封装公制 5763

封装 2225

物理参数

介质材料 Ceramic

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

C2225C474M2RACTU引脚图与封装图
C2225C474M2RACTU引脚图
C2225C474M2RACTU封装图

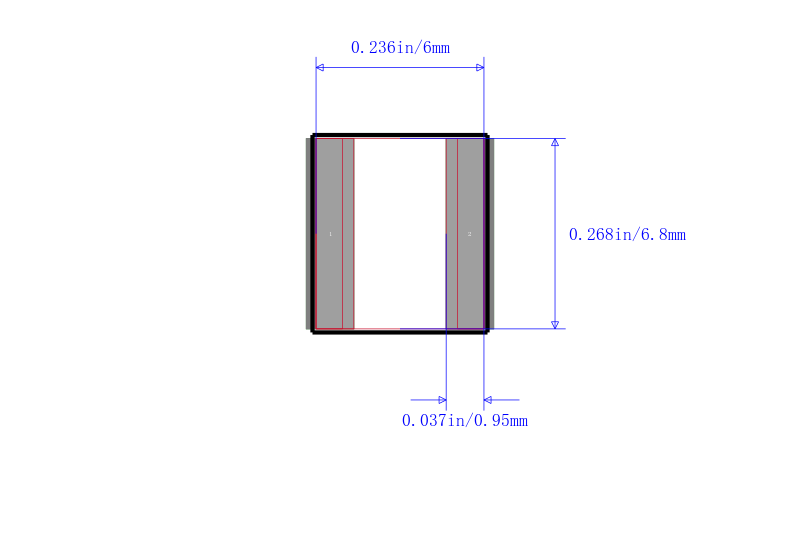

C2225C474M2RACTU封装焊盘图
在线购买C2225C474M2RACTU
型号: C2225C474M2RACTU
描述:Cap Ceramic 0.47uF 200V X7R 20% SMD 2225 125℃ Plastic T/R
