C2220C105K5RALTU

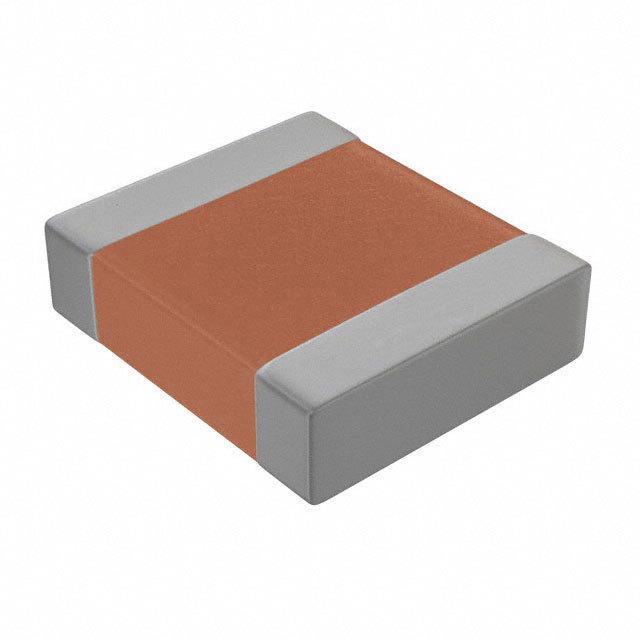

C2220C105K5RALTU图片1
C2220C105K5RALTU图片2
C2220C105K5RALTU图片3
C2220C105K5RALTU图片4
C2220C105K5RALTU概述

Cap Ceramic 1uF 50V X7R 10% Pad SMD 2220 125℃ T/R

±10% 50V 陶瓷器 X7R 2220(5750 公制)


立创商城:
1uF ±10% 50V


得捷:
CAP CER 1UF 50V X7R 2220


艾睿:
This C2220C105K5RALTU multilayer ceramic capacitor from Kemet has so many uses that it even has a standard classification system for all its uses! It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its capacitance value is 1uF. This product is 5.7 mm long, 1.1 mm tall and 5 mm deep. It has a tolerance of 10%.


Verical:
Cap Ceramic 1uF 50V X7R 10% Pad SMD 2220 125C T/R


C2220C105K5RALTU中文资料参数规格
技术参数

额定电压DC 50.0 V

绝缘电阻 1 GΩ

电容 1 µF

容差 ±10 %

电介质特性 X7R

工作温度Max 125 ℃

工作温度Min -55 ℃

额定电压 50 V

封装参数

安装方式 Surface Mount

封装 2220

外形尺寸

宽度 5.7 mm

高度 1.1 mm

封装 2220

物理参数

介质材料 Ceramic

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 旁通,去耦

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

数据手册

在线购买C2220C105K5RALTU
型号: C2220C105K5RALTU
描述:Cap Ceramic 1uF 50V X7R 10% Pad SMD 2220 125℃ T/R
