MLCC-多层陶瓷电容器
MLCC-多层陶瓷器
得捷:

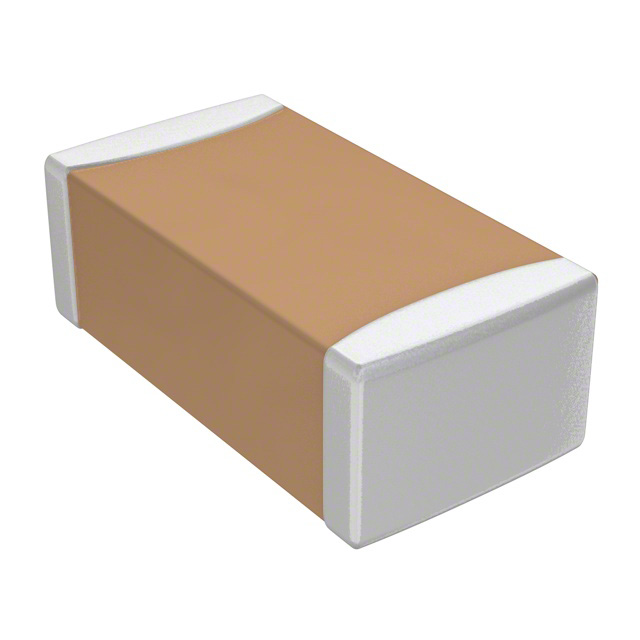

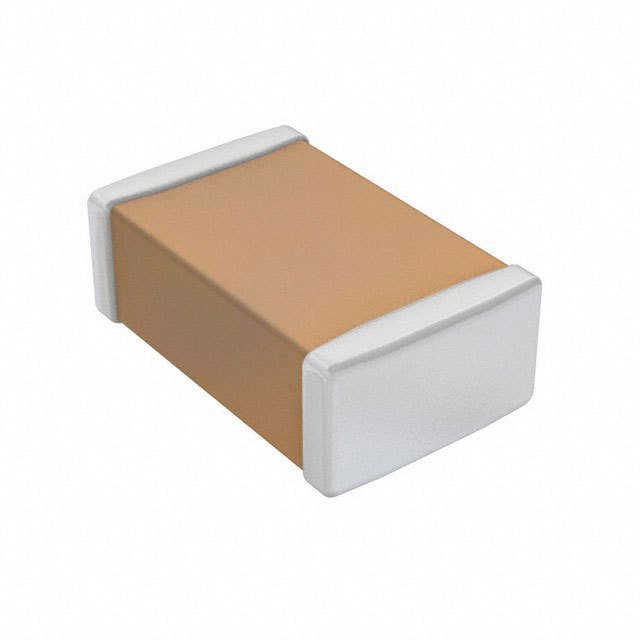

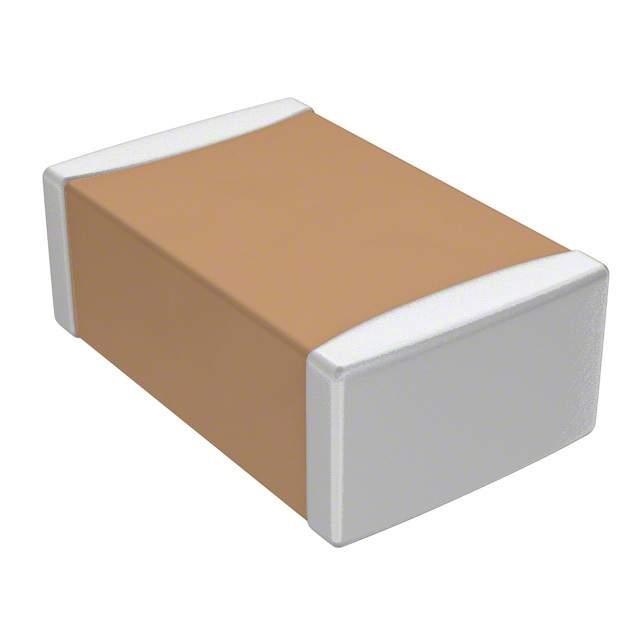

CAP CER 43PF 50V C0G/NP0 0805
艾睿:
Do you need a capacitor with high stability and low losses? Then this CL21C430JBANNNC multilayer ceramic capacitor from Samsung Electro-Mechanics is the solution you are looking for! It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its capacitance value is 43pF. This product is 2 mm long, 0.65 mm tall and 1.25 mm deep. It has a tolerance of 5%.
安富利:
Cap Ceramic 43pF 50VDC C0G 5% SMD 0805 Paper T/R
额定电压DC 50.0 V
电容 43 pF
容差 ±5 %
电介质特性 C0G/NP0
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
封装公制 2012

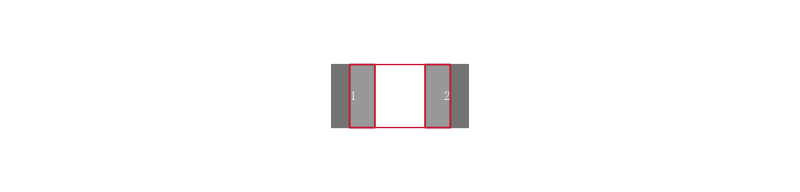

封装 0805
长度 2 mm
宽度 1.25 mm
高度 0.65 mm
封装公制 2012
封装 0805
厚度 0.65 mm
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CL21C430JBANNNC Samsung 三星 | 当前型号 | 当前型号 |
C0805C430J5GACTU 基美 | 类似代替 | CL21C430JBANNNC和C0805C430J5GACTU的区别 |
CL21C430JDCNCNC 三星 | 功能相似 | CL21C430JBANNNC和CL21C430JDCNCNC的区别 |
CL21C430GDCNCNC 三星 | 功能相似 | CL21C430JBANNNC和CL21C430GDCNCNC的区别 |
