接线端子, 焊接套管, 1.7MM
SolderSleeve one-step terminators provide electrical termination in a wide variety of interconnect applications. One-step terminator capabilities include terminating wires to
component terminals, ground wires to cable shields, terminating coaxial cable, and wire-to-wire splicing.
欧时:
Sleeve,Solder,LowTemperature,ClearPol
贸泽:
Solder & Shield Tubing CLR SOLDER SLEEVE .065"ID
e络盟:
焊接套管, 可热缩, 端子, 1.7 mm, 透明, 聚烯烃, 26 mm
艾睿:
Cable Accessories Solder Sleeve One Step Wire Terminator Cross-Linked Modified Polyolefin Clear Tin Package
Allied Electronics:
SolderSleeve; ShieldTerminator; TransClear; Polyolefin; 26.0mmL; CWT Series
Chip1Stop:
Connector Accessories Solder Sleeve One Step Wire Terminator
Verical:
Cable Accessories Solder Sleeve One Step Wire Terminator Cross-Linked Modified Polyolefin Clear Tin Package
MASTER:
Cable Accessories Solder Sleeve One Step Wire Terminator Cross-Linked Modified Polyolefin Clear Package
Powell:
SolderSleeve Wire Splices
Electro Sonic:
Cable Accessories Solder Sleeve One Step Wire Terminator Cross-Linked Modified Polyolefin Clear Package
Win Source:
SOLDER SLEEVE .065" DIA CLEAR
触点电镀 Tin
绝缘电阻 1000 MΩ
方向 Straight
跌落电压 2 mV
工作温度Max 125 ℃
工作温度Min -55 ℃

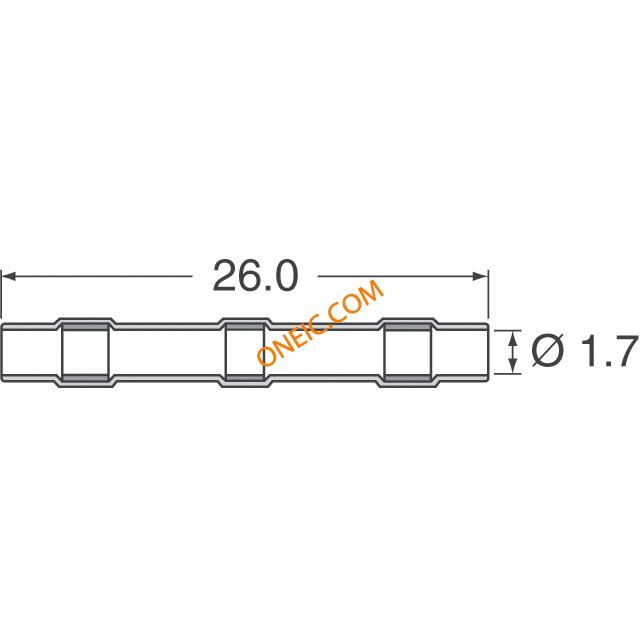

长度 26 mm
内径尺寸 1.7 mm
颜色 Clear
触点材质 Copper
材质 Polyolefin PO
绝缘材质 Polyolefin
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
制造应用 Aerospace, Defence, Military, Commercial, 商业, 车用, 国防, Maintenance & Repair, 军用与航空, 国防, 军用与航空, Automotive, 维护与修理
RoHS标准 Non-Compliant
含铅标准 Not Applicable
ELV标准 Non-Compliant
REACH SVHC标准 Contains SVHC
军工级 Yes
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CWT-9001 TE Connectivity 泰科 | 当前型号 | 当前型号 |
B-155-9001 泰科 | 功能相似 | CWT-9001和B-155-9001的区别 |
