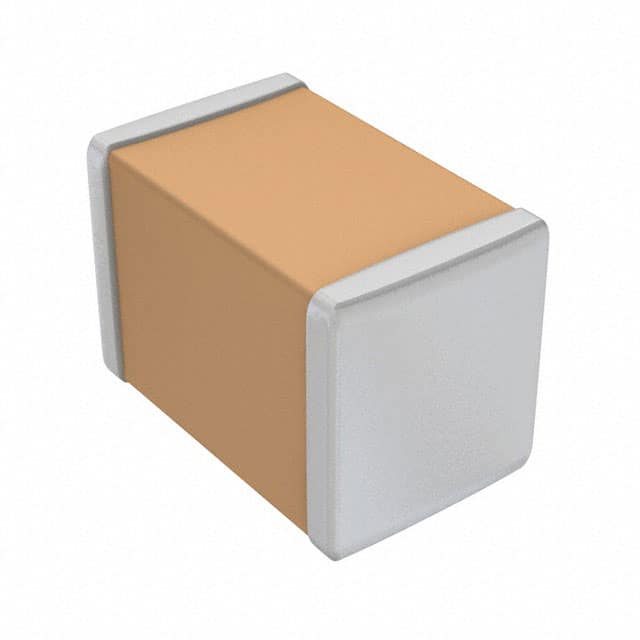

CL31 系列 1206 10 uF 10 V -20 % +80 % Y5V SMD 多层陶瓷电容
MLCC-多层陶瓷器
得捷:
CAP CER 10UF 10V Y5V 1206
立创商城:
10uF -20%~+80% 10V
艾睿:
Use its standard classification system to find out what this CL31F106ZPFNNNE multilayer ceramic capacitor from Samsung Electro-Mechanics can do for you! It can withstand a voltage of 10 VDC. This MLCC capacitor has a maximum operating temperature of 85 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This product is 3.2 mm long, 1.25 mm tall and 1.6 mm deep. Its capacitance value is 10uF.
安富利:
Cap Ceramic 10uF 10V Y5V -20% to 80% SMD 1206 85°C Embossed T/R
Verical:
Cap Ceramic 10uF 10V Y5V -20% to 80% Pad SMD 1206 85C T/R
额定电压DC 10.0 V
绝缘电阻 10 GΩ
电容 10 µF
容差 +80/-20%
电介质特性 Y5V
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 10 V
安装方式 Surface Mount
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 1.25 mm
封装公制 3216
封装 1206
厚度 1.25 mm
材质 Y5V/-30℃~+85℃
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CL31F106ZPFNNNE Samsung 三星 | 当前型号 | 当前型号 |
CL31F106ZPHNNNE 三星 | 完全替代 | CL31F106ZPFNNNE和CL31F106ZPHNNNE的区别 |
C3216Y5V1A106Z/8 东电化 | 类似代替 | CL31F106ZPFNNNE和C3216Y5V1A106Z/8的区别 |
1206ZG106ZAT2A 艾维克斯 | 功能相似 | CL31F106ZPFNNNE和1206ZG106ZAT2A的区别 |
