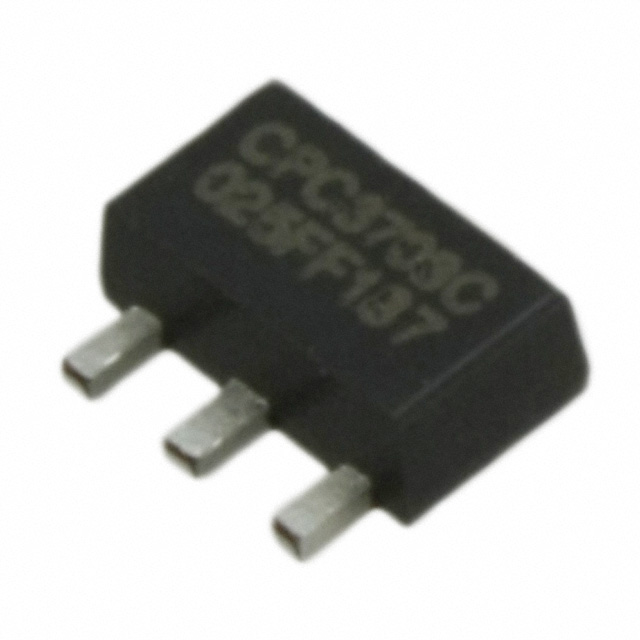

CPC 系列 250 V 300 mA N沟道 耗尽型 场效应 晶体管
表面贴装型 N 通道 250 V 360mA(Ta) 1.1W(Ta) SOT-89-3
得捷:
MOSFET N-CH 250V 360MA SOT89-3
立创商城:
N沟道 250V 360mA
贸泽:
MOSFET N Ch Dep Mode FET 250V
艾睿:
Use Ixys Corporation&s;s CPC3703CTR power MOSFET to switch quickly between different electronic signals with ease. Its maximum power dissipation is 1100 mW. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This MOSFET transistor has an operating temperature range of -55 °C to 125 °C. This device utilizes dmos technology. This N channel MOSFET transistor operates in depletion mode.
TME:
Transistor: N-MOSFET; unipolar; 250V; 0.36A; 1.1W; SOT89
Verical:
Trans MOSFET N-CH Si 250V Automotive 4-Pin3+Tab SOT-89 T/R
Electro Sonic:
Trans MOSFET N-CH Si 250V Automotive 4-Pin3+Tab SOT-89 T/R
通道数 1
漏源极电阻 4 Ω
极性 N-CH
耗散功率 1.6 W
漏源极电压Vds 250 V
漏源击穿电压 250 V
上升时间 8 ns
输入电容Ciss 350pF @25VVds
额定功率Max 1.6 W
下降时间 70 ns
工作温度Max 125 ℃
工作温度Min 55 ℃
耗散功率Max 1.1W Ta
安装方式 Surface Mount
引脚数 4
封装 SOT-89-3
封装 SOT-89-3
材质 Silicon
工作温度 -55℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CPC3703CTR IXYS Semiconductor | 当前型号 | 当前型号 |
CPC3703C IXYS Semiconductor | 类似代替 | CPC3703CTR和CPC3703C的区别 |
