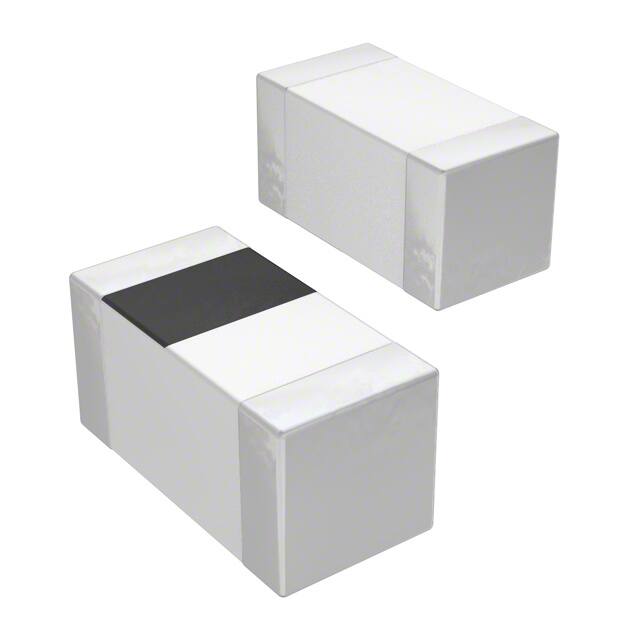

0603 1nH ±0.3nH
1 nH 无屏蔽 多层 器 800 mA 50 毫欧最大 0603(1608 公制)
得捷:
FIXED IND 1NH 800MA 50 MOHM SMD
艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this high frequency chip CIH10T1N0SNC surface mount inductor from Samsung Electro-Mechanics is perfect for you! This SMD inductor has an operating temperature range of -55 °C to 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It has an inductance of 1n H. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 10G Hz. This device utilizes multi-layer technology. This SMD inductor has a maximum DC current of 800m A with a maximum resistance of 50m Ohm. This product is 1.75 mm long, 0.95 mm tall and 0.95 mm deep.
安富利:
Ind Chip Thick Film Multi-Layer 1nH 0.3nH 10000MHz 8Q-Factor 800mA 1608 Paper T/R
Verical:
Inductor High Frequency Chip Multi-Layer 0.001uH 0.3nH 100MHz 8Q-Factor Ceramic 0.8A 0.05Ohm DCR 0603 T/R
Win Source:
FIXED IND 1NH 800MA 50 MOHM SMD
额定电流 800 mA
电感 0.001 µH
自谐频率 10 GHz
产品系列 CIH
电感公差 ±0.3 nH
测试频率 100 MHz
电阻DC) ≤50 mΩ
工作温度Max 125 ℃
工作温度Min -55 ℃
电阻DC Max 0.05 Ω
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.95 mm
封装公制 1608
封装 0603
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
