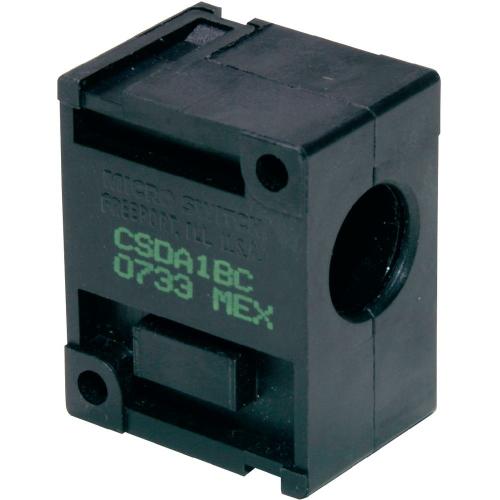

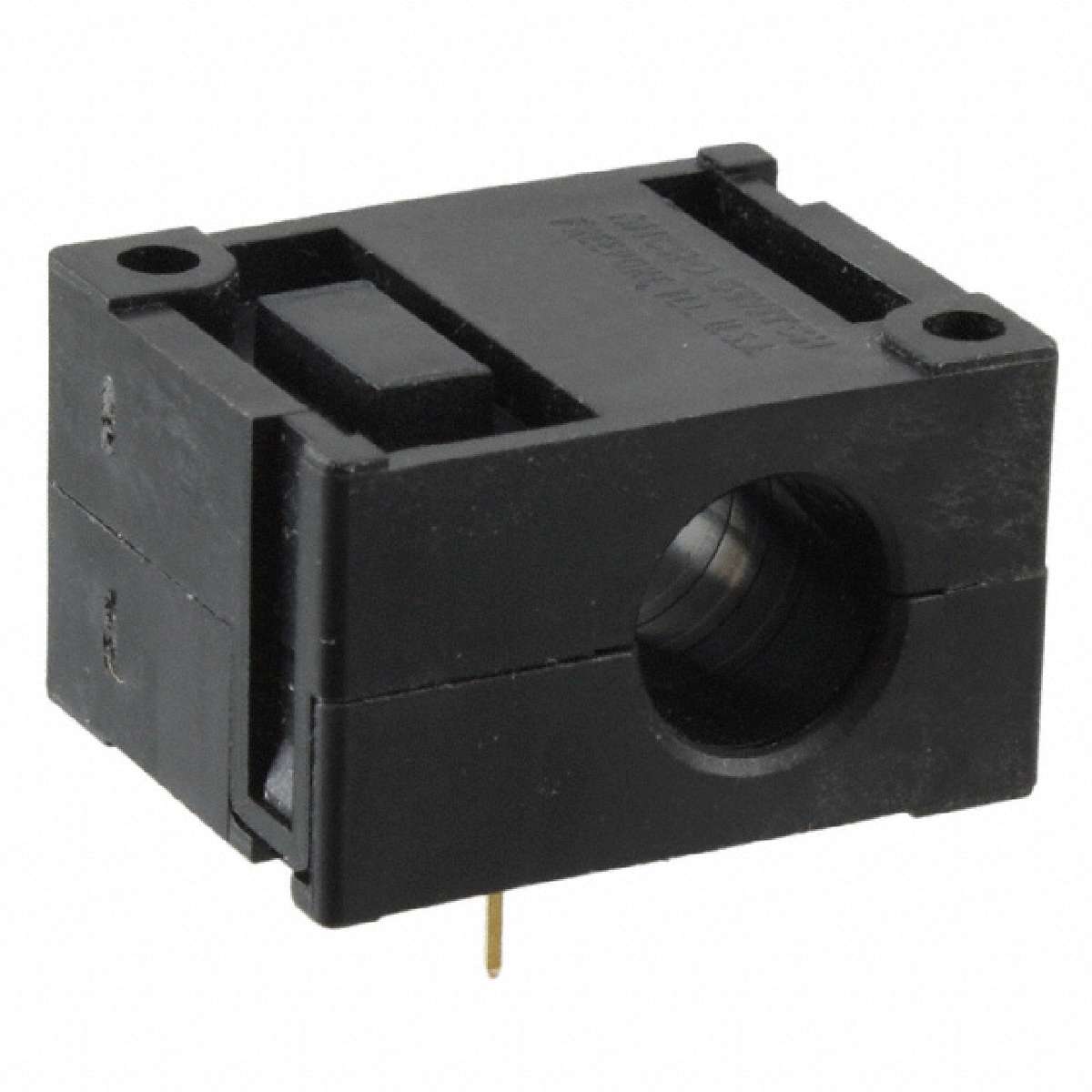

CSDA1BC

HONEYWELL  CSDA1BC  电流传感器,输入6.5A,输出12mA,集电极开路输出,电流阱型,3脚

The CS Series digital current sensor provides a logic level output that changes from approximately VCC to 0.4 volts when the sensed current exceeds the operate point. Each digital sensor will operate on AC or DC current, but the output will turn off at every zero crossing when sensing AC current.

**Features:**

* AC or DC Current Sensing

* Through-Hole Design

* Logic Level Output Change

**Specifications:**

* Accepts AMP Connector 512-6170 Mfr."s Type 102241-1 with 87756-6 Pins

* Operating Temperature: –40°F to +185°F
