CSLA1CH

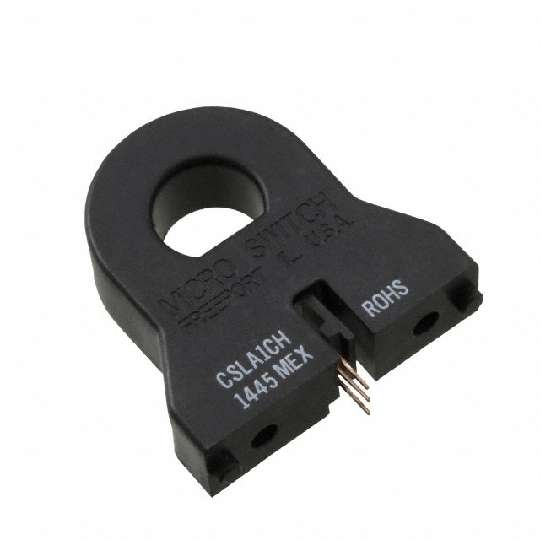

CSLA1CH图片1

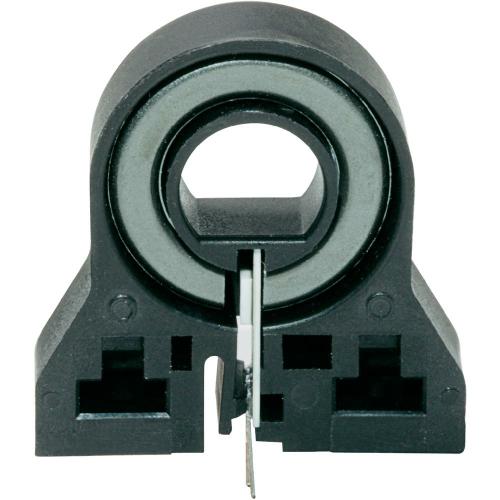

CSLA1CH图片2
CSLA1CH图片3
CSLA1CH图片4
CSLA1CH图片5
CSLA1CH图片6
CSLA1CH图片7
CSLA1CH图片8
CSLA1CH图片9
CSLA1CH概述

Open Loop Current Sensor AC-DC Current 9V/12V/15V 3Pin

电流传感器 150A 1 通道 霍尔效应,开环 双向 模块,单通式


得捷:
SENSOR CURRENT HALL 150A AC/DC


立创商城:
CSLA1CH


欧时:
CSLA Series linear current sensor


艾睿:
Protect your system from dangerous current levels by measuring the level of current passing through the device with this CSLA1CH current sensor from Honeywell. This device has a minimum operating supply voltage of 8 V and a maximum of 16 V. This part has a minimum operating temperature of -25 °C and a maximum of 85 °C.


Chip1Stop:
Closed Loop Current Sensor AC/DC Current 9V/12V/15V 3-Pin


Verical:
Open Loop Current Sensor AC/DC Current 9V/12V/15V 3-Pin


Newark:
# HONEYWELL  CSLA1CH  Current Sensor, CSLA series, Linear, -150A to 150A, Source Output, 8 Vdc to 16 Vdc


MASTER:
Open Loop Current Sensor AC/DC Current 9V/12V/15V 3-Pin


Powell:
SENSOR


Electro Sonic:
Open Loop Current Sensor AC/DC Current 9V/12V/15V 3-Pin


CSLA1CH中文资料参数规格
技术参数

通道数 1

工作温度Max 85 ℃

工作温度Min -25 ℃

电源电压 8V ~ 16V

封装参数

安装方式 Through Hole

引脚数 3

封装 Module, Single Pass Through

外形尺寸

封装 Module, Single Pass Through

物理参数

工作温度 -25℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 9030330040

数据手册

在线购买CSLA1CH
型号: CSLA1CH
描述:Open Loop Current Sensor AC-DC Current 9V/12V/15V 3Pin
