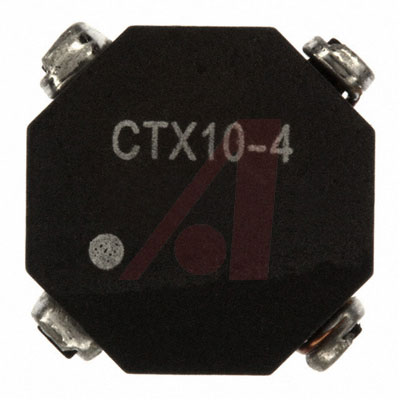

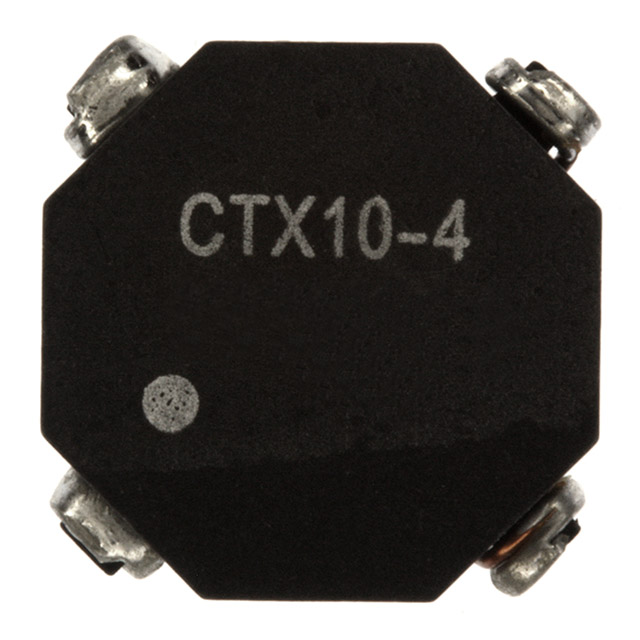

Inductor Power Wirewound 9.6uH/38.42uH 20% 100kHz Amorphous Metal 3.4A/1.7A 19mOhm/78mOhm DCR T/R

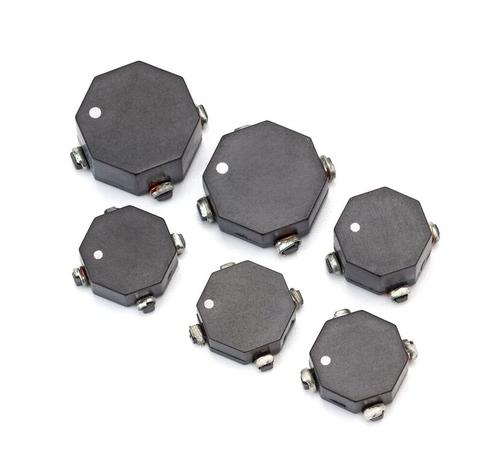

The is a Power Inductor for noise filtering and filter chokes. Surface-mount magnetic that can be used as single or coupled inductor or 1:1 transformer that provides isolation between two winding. OCTA-PAC®"s is designed around high frequency, low loss core material. ECONO-PAC™"s is a lower cost version of OCTA-PAC®"s offering high saturation flux density, powder iron core material. The OCTA-PAC® PLUS"s offer higher current ratings and higher saturation flux densities than OCTA-PAC® and ECONO-PAC™, amorphous metal core material. This secured 4-terminal mounting inductor more versatile inductance combination by series or parallel connections and supports ±20% inductance tolerance.
额定电流 3.4 A
容差 ±20 %
电感 9.6 µH
电阻 19.0 mΩ
屏蔽 No
电感公差 ±20 %
电阻DC) 0.019 Ω
额定电流DC 3.4 A
电阻DC Max 0.015 Ω
安装方式 Surface Mount
引脚数 4
封装 SMD
长度 13.97 mm
宽度 13.97 mm
高度 6.35 mm
封装 SMD
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8504508000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CTX10-4-R Cooper Bussmann 库柏 | 当前型号 | 当前型号 |
CTX10-4 库柏 | 功能相似 | CTX10-4-R和CTX10-4的区别 |
CTX10-4P 库柏 | 功能相似 | CTX10-4-R和CTX10-4P的区别 |
CTX10-4A Coiltronics/Cooper Bussmann | 功能相似 | CTX10-4-R和CTX10-4A的区别 |
