CTX20-2-R概述

Inductor Power Wirewound 20.73uH/82.91uH 20% 100kHz Amorphous Metal 1.3A/0.65A 107mOhm/426mOhm DCR T/R

* Surface Mount Magnetics That Can Be Used as Single or Coupled Inductors or 1:1 Transformers That Provide Isolation Between Two Windings

* OCTA-PACs Are Designed Around High Frequency, Low Loss Material

* ECONO-PACs Are a Lower Cost Version of OCTA-PACs Offering High Saturation Flux Density

* OCTA-PAC PLUSs Offer Higher Current Ratings and Higher Saturation Flux Densities Than OCTA-PAC and ECONO-PAC

* Secure 4-Terminal Mounting

* Inductor More Versatile Inductance Combination By Series or Parallel Connections

CTX20-2-R中文资料参数规格

技术参数

额定电流 1.3 A

容差 ±20 %

电感 20.73 µH

屏蔽 No

电感公差 ±20 %

电阻DC） 0.107 Ω

额定电流DC 1.3 A

电阻DC Max 0.107 Ω

封装参数

安装方式 Surface Mount

引脚数 4

封装 SMD

外形尺寸

长度 11.43 mm

宽度 11.43 mm

高度 5.97 mm

封装 SMD

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Unknown

包装方式 Cut Tape CT

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

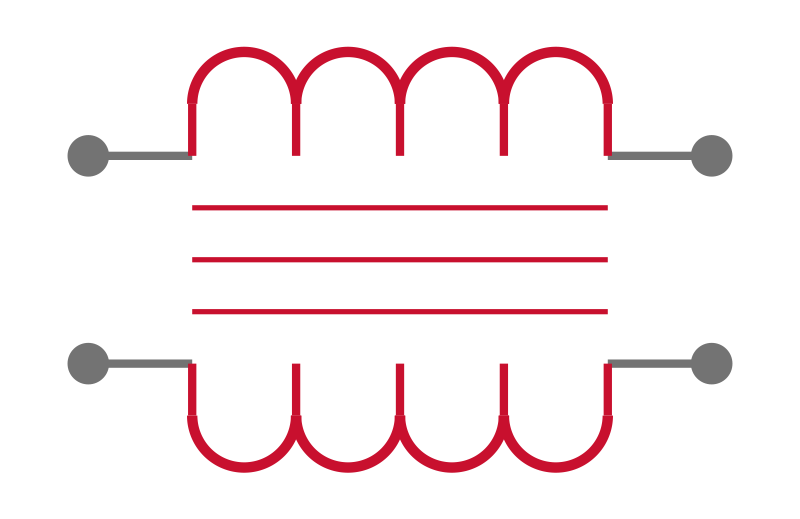

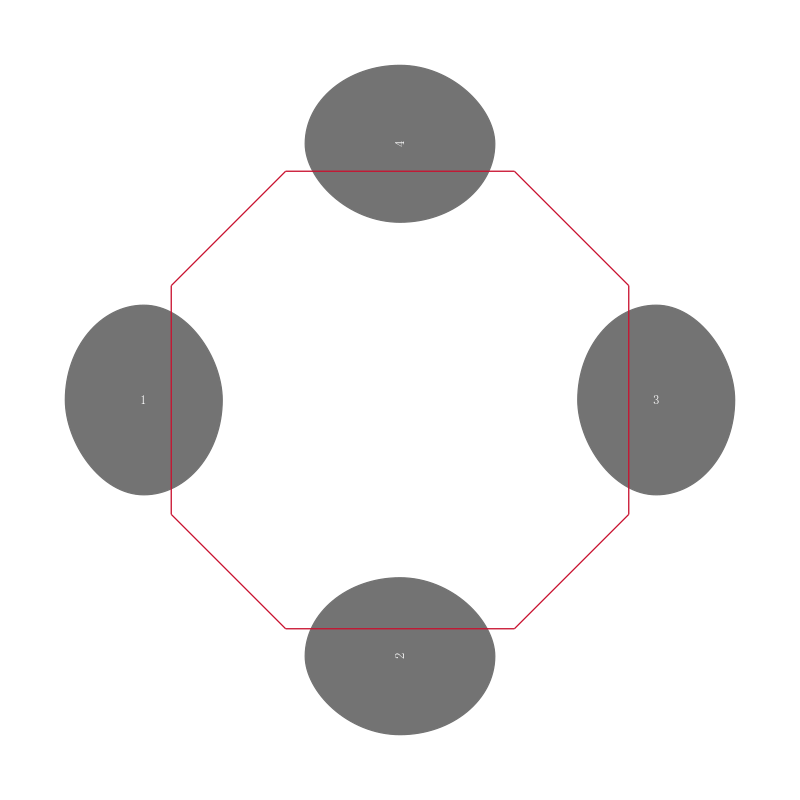

CTX20-2-R引脚图与封装图

在线购买CTX20-2-R

型号： CTX20-2-R

制造商： Cooper Bussmann 库柏

描述：Inductor Power Wirewound 20.73uH/82.91uH 20% 100kHz Amorphous Metal 1.3A/0.65A 107mOhm/426mOhm DCR T/R

替代型号CTX20-2-R
